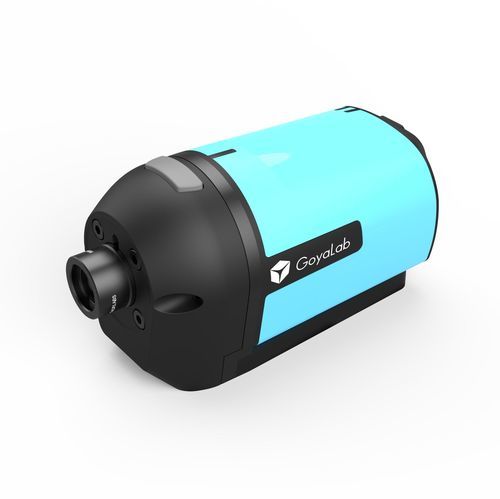

Fluorescence spectrometer IndiGo fluo laser-405

laboratoryfor research and developmentfor scientific applications

The IndiGo fluo laser-405 is a modular fluorescence spectrometer designed for portability and smartphone connectivity. Compact enough to fit in the palm of your hand, it connects via Bluetooth to smartphones or tablets, making it highly versatile for field and laboratory use. The system consists of the IndiGo core module and an additional laser excitation module (405nm, 10mw), with an optional 100mw laser available. With a simple push button, users can trigger laser excitation and measure fluorescence spectra from 380 nm to 780 nm, achieving a spectral resolution of 2nm (FWHM). The device is compatible with all smartphones or tablets equipped with Bluetooth 5.0. It is portable, affordable, and customizable, making it suitable for a wide range of applications.

Key Features

• Modular design: IndiGo core module plus laser excitation module (405nm, 10mw standard, 100mw optional)
• Bluetooth 5.0 connectivity for smartphones and tablets
• Measures fluorescence spectrum from 380 nm to 780 nm
• Spectral resolution: 2nm (FWHM)
• Portable and fits in the palm of your hand
• Push-button operation for instant measurement
• Customizable and affordable

Applications

• Chemical analysis
• Education and research
• Gemology and jewellery (including authentication of diamond photoluminescence and Raman spectra)
• Lighting and filters identification
• Traceability and authentication
• Other scientific and industrial applications

Downloads

• IndiGo datasheet available
• Application note for diamond testing (photoluminescence and Raman spectrum)

Technical Specifications

• Excitation source: Laser 405nm, 10mw (100mw optional)
• Spectral range: 380 nm – 780 nm
• Spectral resolution: 2nm (FWHM)
• Connectivity: Bluetooth 5.0
• Compatibility: All smartphones/tablets with Bluetooth 5.0
• Operation: Push-button for laser excitation and measurement
• Portability: Handheld, fits in the palm of your hand
