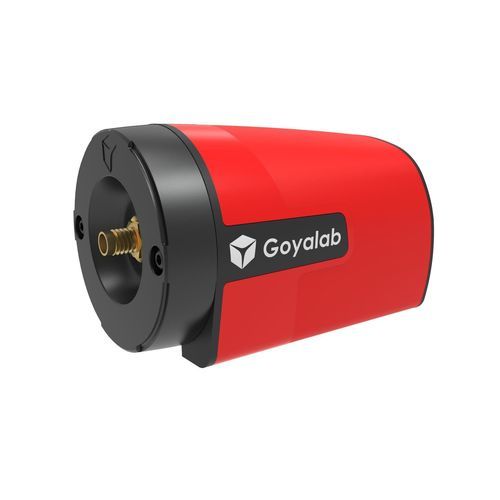

Near-infrared spectrometer IndiGo NIR

industrialfor scientific applicationsfor quality control

IndiGo NIR is a portable, connected, and affordable near infrared spectrometer designed for versatile spectral measurements. This modular device fits in the palm of your hand and connects via Bluetooth to smartphones and tablets, or via USB-C to a PC. It operates autonomously on battery for up to 8 hours of measurements and can remain on standby for several days. When connected to a PC, it recharges and operates using the USB-C port. IndiGo NIR measures emission, absorption, and transmission spectra from 720nm to 1040nm with a resolution of about 2nm (FWHM).

Included Applications

• PC application for Windows 10 (USB-C connection)
• Android application for spectrum analysis (Bluetooth 5.0 connection)

Modularity and Compatibility

• Compatible with several modules developed by GoyaLab for additional functionalities, such as NIR reflection on solids and NIR absorption/reflection on liquids in cuvettes.
• Modules can be customized for specific needs (OEM).

Calibration

• Pre-calibrated on the nanoscale; intensity calibration is optional.
• Re-calibration device available via USB connection and dedicated software.

Key Features

• Instant measurement
• Easy to use
• Usable anywhere in the world
• Affordable

Applications

• Chemical analysis
• Education and research
• Gemology and jewellery
• Lighting and filters identification
• Traceability and authentication
• Other scientific and industrial applications

Technical Specifications

• Measurement range: 720nm to 1040nm
• Resolution: ~2nm (FWHM)
• Connectivity: Bluetooth 5.0, USB-C
• Battery life: 8 hours (measurement), several days (standby)
• Compatible applications: Windows 10 PC, Android
• Modular design with optional modules for solids and liquids
• Pre-calibrated, with optional intensity calibration and re-calibration device
