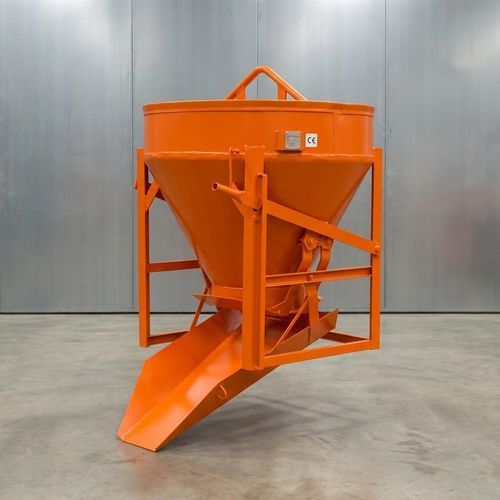

Conical concrete skip CH350L

bottom-opening

Description
Concrete pouring bucket manufactured in Galicia for crane use. Available in capacities of 350 L, 500 L, 750 L and 1000 L. Engineered for structural resistance and on-site safety. In-house manufacturing GOYDU – Dusa Metal Galicia.

Available models

• CH350L — 350 L
• CH500L — 500 L
• CH750L — 750 L
• CH1000L — 1000 L

Identified dimensions
A — Height
B — Ø

Dimensions and load chart
Model | A (mm) | B (mm) | Weight (kg) | Max load
CH350L | 1030 | 950 | 104 | 770 kg
CH500L | 1220 | 950 | 118 | 1100 kg
CH750L | 1400 | 1250 | 172 | 1650 kg
CH1000L | 1400 | 1400 | 200 | 2200 kg

About GOYDU
At GOYDU, based in Galicia, we develop and manufacture industrial tools, lifting accessories and metal solutions designed for resistance, safety and efficiency in construction, industry and demanding work environments.

Features / technical specifications

• Model: CH350L
• Capacity: 350 L
• Height (A): 1030 mm
• Diameter (B): 950 mm
• Weight: 104 kg
• Max load: 770 kg
• Intended use: crane-mounted concrete pouring
• Manufacture: GOYDU – Dusa Metal Galicia (made in Galicia)
• Construction: metal bucket engineered for structural resistance and on-site safety
