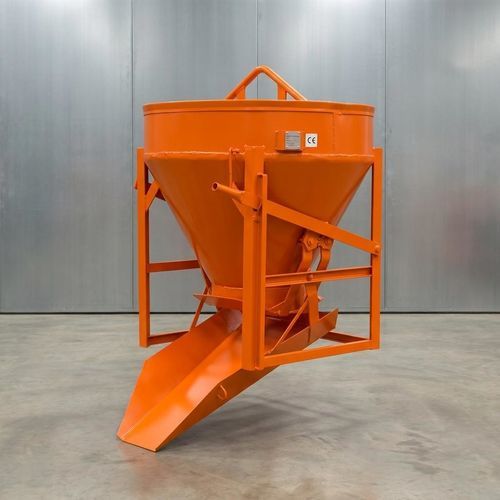

Conical concrete skip CH500L

bottom-opening

Description
Concrete pouring buckets manufactured in Galicia for crane handling. Available in 350 L, 500 L, 750 L and 1000 L. Manufactured by GOYDU – Dusa Metal Galicia.

Applications

• Transport and discharge of concrete on site using a crane
• Use in construction, industrial and heavy-duty work environments

Dimensions and loads
Model | A (mm) | B (mm) | Weight (kg) | Max load
CH350L | 1030 | 950 | 104 | 770 kg
CH500L | 1220 | 950 | 118 | 1100 kg
CH750L | 1400 | 1250 | 172 | 1650 kg
CH1000L | 1400 | 1400 | 200 | 2200 kg

Technical characteristics / specifications

• Available models: CH350L, CH500L, CH750L, CH1000L
• Capacities: 350 L, 500 L, 750 L, 1000 L
• Material: metal construction (GOYDU / Dusa Metal Galicia)
• Intended use: concrete pouring bucket for crane handling
• Example (CH500L): A = 1220 mm; B = 950 mm; Weight = 118 kg; Max load = 1100 kg
• Built to meet load requirements and on-site safety
