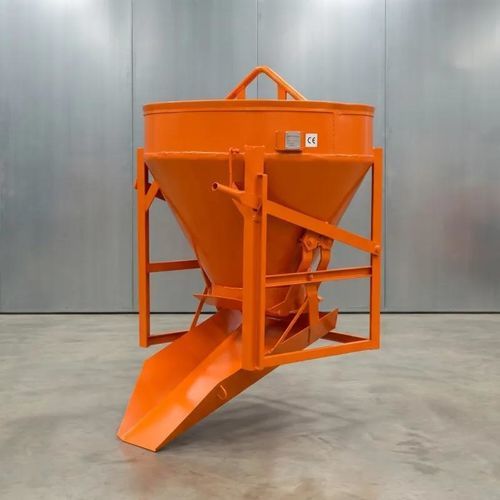

Conical concrete skip CH750L

bottom-opening

Description
Designed to ensure practicality, efficiency and safety on site, this concrete bucket allows controlled transport and discharge of fresh concrete by crane or overhead crane.
Its design facilitates filling, handling and dosing of the material, enabling precise, clean and safe pours in various construction and industrial environments.
Available in different capacities according to project requirements.

Additional information
Manufactured in Galicia for crane use. Available in 350L, 500L, 750L and 1000L. In-house manufacturing GOYDU – Dusa Metal Galicia.

Main features

• Use: transport and controlled discharge of fresh concrete by crane or overhead crane.
• Design that facilitates filling, handling and dosing of the material.
• Precise, clean and safe pours in construction and industrial sites.
• Available capacities: 350L, 500L, 750L, 1000L.

Model table
Model | A (mm) | B (mm) | Weight (Kg) | Max load
CH350L | 1030 mm | 950 mm | 104 Kg | 770 Kg
CH500L | 1220 mm | 950 mm | 118 Kg | 1100 Kg
CH750L | 1400 mm | 1250 mm | 172 Kg | 1650 Kg
CH1000L | 1400 mm | 1400 mm | 200 Kg | 2200 Kg

Characteristics / Technical specifications

• Brand: GOYDU (in-house manufacturing Dusa Metal Galicia).
• Commercial designation (main model on this page): CH750L.
• Available capacities: 350L, 500L, 750L, 1000L.
• Dimensions and weights by model: CH350L — A 1030 mm, B 950 mm, Weight 104 Kg, Max load 770 Kg; CH500L — A 1220 mm, B 950 mm, Weight 118 Kg, Max load 1100 Kg; CH750L — A 1400 mm, B 1250 mm, Weight 172 Kg, Max load 1650 Kg; CH1000L — A 1400 mm, B 1400 mm, Weight 200 Kg, Max load 2200 Kg.
• Application: Construction and industry for concrete pours by crane.
• Origin / manufacturing: Galicia, Spain.
