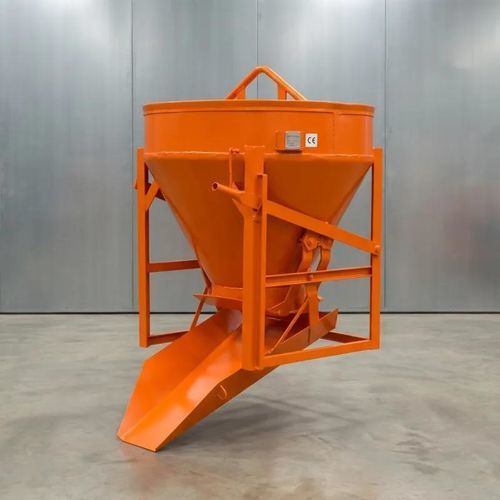

Conical concrete skip CH1000L

bottom-opening

Description
Designed to provide practicality, efficiency and safety on site, this concrete bucket enables controlled transport and discharge of fresh concrete by crane or overhead crane.
Its design facilitates filling, handling and dosing of material, helping to achieve precise, clean and safe pours in various construction and industrial environments.
Available in different capacities to suit project requirements.

Available models

• CH350L — 350 L
• CH500L — 500 L
• CH750L — 750 L
• CH1000L — 1000 L

Dimensions and specifications

• CH350L — A: 1030 mm, B: 950 mm, Weight: 104 kg, Max load: 770 kg
• CH500L — A: 1220 mm, B: 950 mm, Weight: 118 kg, Max load: 1100 kg
• CH750L — A: 1400 mm, B: 1250 mm, Weight: 172 kg, Max load: 1650 kg
• CH1000L — A: 1400 mm, B: 1400 mm, Weight: 200 kg, Max load: 2200 kg

Features / Technical specifications

• Manufacturer / brand: GOYDU – Dusa Metal Galicia
• Intended use: transport and controlled discharge of fresh concrete by crane or overhead crane
• Benefits: practicality, efficiency and on-site safety; facilitates filling, handling and dosing for precise and clean pours
• Available capacities: 350 L, 500 L, 750 L, 1000 L
• Dimensions and weight by model: CH350L (A 1030 mm, B 950 mm, Weight 104 kg), CH500L (A 1220 mm, B 950 mm, Weight 118 kg), CH750L (A 1400 mm, B 1250 mm, Weight 172 kg), CH1000L (A 1400 mm, B 1400 mm, Weight 200 kg)
• Maximum loads by model: CH350L 770 kg, CH500L 1100 kg, CH750L 1650 kg, CH1000L 2200 kg
• Applications: construction, civil engineering and industry for controlled pouring operations
