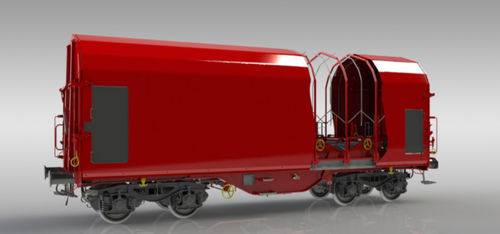

Wheeled carrier Shimmns ttu 728

for the iron and steel sectorcoil

Features

• Covered freight wagon designed for the transport of cold steel coils placed in dedicated cradles.
• Coils are protected from environmental conditions by a tarpaulin that can be rolled from either end, allowing approximately two thirds of the wagon to be opened.
• Top and side loading/unloading possible using industrial cranes and lifts.
• Design compliant with TSI, EN and UIC standards; TEN GE marking for traffic operation.

Capabilities (cradle characteristics)
Characteristics | Cradle 1 | Cradle 2 | Cradle 3 | Cradle 4 | Cradle 5
Max. ø of coil [mm] | 2,250 | 1,700 | 2,700 | 1,700 | 2,250
Min. ø of coil [mm] | 1,000 | 800 | 1,000 | 800 | 1,000
Max. weight of coil [t] | 36 | 17 | 45 | 17 | 36


Parameters

• Axle load: 22.5 t / axle
• Track gauge: 1,435 mm
• Loading gauge: G1 TSI
• Brake regime: S
• Brake type: GP-A (K)
• Max. speed at 90.0 t: 100 km/h
• Max. speed at 58.0 t: 120 km/h
• Climate condition: T1
• Min. radius (single wagon): 35.0 m
• Length over buffers: 12,040 mm
• Tare weight: ~22.7 t / 22.0 t (light bogies)
• Payload: ~67.3 t
• Bogie type: Y25Ls1-K / Y25Lsd-KP1
• Number of cradles: 5
• Width in cradle: 2,410 mm
• Number of arms: 20 pcs (4 per coil)
• Coil fixation type: Screw mechanism
• Surface of cradles: Rubber 10 mm
• Number of internal arches: 7
• Supports between arches: Yes
• Front wall mechanism: 4 points

Measurements
All measurements are in millimetres.

Technical specifications

• Axle load: 22.5 t / axle
• Track gauge: 1,435 mm
• Loading gauge: G1 TSI
• Brake regime: S
• Brake type: GP-A (K)
• Max. speed at 90.0 t: 100 km/h
• Max. speed at 58.0 t: 120 km/h
• Climate condition: T1
• Min. radius (single wagon): 35.0 m
• Length over buffers: 12,040 mm
• Tare weight: ~22.7 t / 22.0 t (light bogies)
• Payload: ~67.3 t
• Bogie type: Y25Ls1-K / Y25Lsd-KP1
• Number of cradles: 5
• Width in cradle: 2,410 mm
• Number of arms: 20 pcs (4 per coil)
• Coil fixation type: Screw mechanism
• Surface of cradles: Rubber 10 mm
• Number of internal arches: 7
• Supports between arches: Yes
• Front wall mechanism: 4 points
