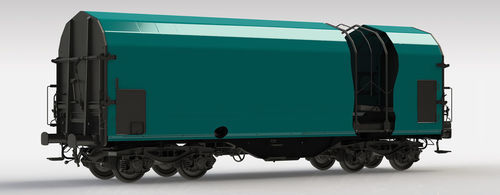

Wheeled carrier Shimmns

for the iron and steel sectorliftingcoil

Features

• This covered freight wagon is designed to transport cold steel coils secured in dedicated cradles.
• Coils are protected by a tarpaulin that opens at both wagon ends, allowing up to 2/3 of the wagon to be exposed for access.
• Loading and unloading are possible from the top and sides using industrial cranes and lifts.
• Design complies with TSI, EN and UIC standards and carries TEN GE marking for operation on the network.
• Equipped with the patented ECSS (Efficient Coil Security System) cargo protection; arms are operated from one side without crossing the wagon.
• Arm drive uses a differential mechanism; underframe prepared per EN 12663-2 and UIC 530-1 for mounting an Automatic Coupler.

Capabilities
Characteristics | Cradle 1 | Cradle 2 | Cradle 3 | Cradle 4 | Cradle 5
Min. ø of coil [mm] | 1,000 | 800 | 1,000 | 800 | 1,000
Max. ø of coil [mm] | 2,250 | 1,700 | 2,700 | 1,700 | 2,250
Max. weight of coil [t] | 34/36 | 17 | 45 | 17 | 34/36


Advantages

• Reduced tare weight options (from 19.3 t).
• Simplified maintenance and servicing of the wagon structure.
• Faster arm operation for cargo securing and release, reducing handling time.
• Arms and front-wall sheathing use recyclable materials.
• Option for electric arm drive to automate load securing/releasing:
  • Standard number of arms: 20 pcs (can operate with 12 or 16 pcs).
  • Min. loading width approx. 470 mm; max. loading width approx. 2,100 mm.

Parameters
Axle load | 22.5 t / axle
Track gauge | 1,435 mm
Loading gauge | G1-TSI
Brake regime | S
Brake type | GP-A (K)
Max. speed for 90.0 t | 100 km/h
Max. speed at 58.0 t | 120 km/h
Climate condition | T1
R_min | 35.0 m
Length over buffers | 12,040 mm
Tare weight | ~ 21.8 t / 21.0 t (light bogies)
Payload | ~ 68.2 t
Bogie type | Y25Ls1-K / Y25Lsd-KP1
Number of cradles | 5
Width in cradle | 2,410 mm
Number of arms | 12 pcs (4 in middle)
Coils fixation type | UIC
Surface of cradles | Plywood 24 mm
Number of inter. archs | 7
Supports between archs | Yes
Front wall mechanism | 4 points


Measurements
All measurements are in millimetres. A schematic drawing is provided on the original product page for reference.
