Wheeled carrier Smmnps
for the iron and steel sectorheavy-duty

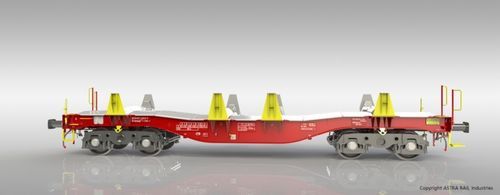

Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 2
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 3
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 4
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 5
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 6
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 7
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 8
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 9
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 10
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 11
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 12
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 13
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 14
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 15
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 16
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 17
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 18
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 19
Wheeled carrier - Smmnps - Greenbrier Europe - for the iron and steel sector / heavy-duty - image - 20
Add to favorites
Compare this product

Characteristics

Locomotion
wheeled
Options
heavy-duty, for the iron and steel sector
Load capacity

79.3 t
(87.4 us ton)

Description

Overview
  • Freight wagon designed for transport of hot steel slabs, primarily between Swedish steel manufacturers and processors.
  • Complies with SJ’s General Technical Specification for Freight Car (GTSF) and applicable international requirements (TSI, EN, RIV, UIC) referenced in the GTSF.
  • Underframe and bolster beams engineered for a possible future axle load increase to 30.0 t; running gear can be accepted for future 30.0 t axle loads on Swedish tracks.
  • All components attached to the steel car structure are specified to operate under severe winter conditions (packing snow, ice, temperatures down to -40°C) and tolerate heat radiation/convection from hot slab surfaces.


Capabilities
  • Transport of hot steel slabs with maximum surface temperature 350°C
  • Payload: 79.3 t
  • 4-axle configuration; designed for freight operation on standard gauge (1,435 mm)


Technical data
  • Axle load: 25.0 t / axle
  • Track gauge: 1,435 mm
  • Loading gauge (without bolster beams): G1-TSI
  • Loading gauge Sweden (with bolster beams): BVF 586.20 Gauge F+A
  • Brake regime: "S"
  • Brake type: Integrated Clasp Brake System (ICB)
  • Max. speed (loaded): 100 km/h
  • Max. speed (unloaded): 120 km/h
  • Climate condition: Tn
  • Minimum curve radius (Rmin): 100.0 m / 70.0 m
  • Buffer type: Category C, UIC 526-1
  • Screw coupling: 850 kN, UIC 826
  • Draw gear: 1000 kN / 21 kJ, UIC 520
  • Length over buffers: 13,900 mm
  • Tare weight: 20.7 t
  • Max. wagon height: 2,388 mm
  • Loading length – within end pockets: 12,052 mm
  • Maximum loading width – within bolster lateral stops: 2,975 / 2,601 mm
  • Bolster lateral stop height over T.O.R.: 2,140 mm
  • Loading height of unloaded car over T.O.R – support beams A: 1,700 mm
  • Loading height of unloaded car over T.O.R – support beams B: 1,620 mm
  • Bogie type: Axle Motion III
  • Wheel diameter: 920 mm
