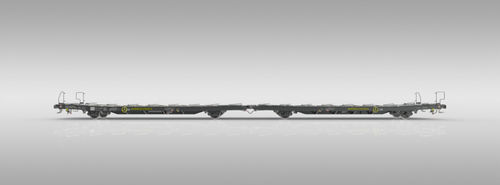

Wheeled carrier Laadrs

platformheavy-duty

Features

• 2 x 2 axle wagon suitable for the carriage of vehicles, especially vans, on a single deck.
• Underframe structure, wheelsets, brake efficiency and running gear are designed to allow potential future reconstruction for the max. load of 20.0 t / axle.
• Structure prepared for the installation of a side handrail.
• Fixed stainless steel bridge consoles positioned between the units.
• Design complies with TSI, EN and UIC requirements and is marked TEN GE for traffic operation.

Capabilities

• Floor designed to withstand a vertical tyre load of 1.0 t per rubber tyre.
• Foldable flaps rated for a maximum wheel/tyre load of 2 t.
• Running surfaces and wheel chocks are hot-dip galvanized to ensure enhanced anticorrosive protection.

Parameters
Axle load: 20.0 t / axle
Track gauge: 1,435 mm
Running gauge: G1-TSI
Max. speed (unloaded): 120 km/h
Max. speed (loaded): 100 km/h
Climate conditions: T1-TSI
Rmin: 75.0 m
Rmin: 150.0 m
Length over buffers: 32,230 mm
Underframe length: 2 x 15,175 mm
Loading length: 30,990 mm
Loading height (except the wagon ends): 1,000 mm
Wheel diameter: 840 mm
Tare weight: 28.7 t

Measurements
All measurements are in millimeters.

Specifications

• Model name: Laadrs
• Axle load: 20.0 t/axle
• Track gauge: 1,435 mm
• Running gauge: G1-TSI
• Max. speed (unloaded): 120 km/h
• Max. speed (loaded): 100 km/h
• Climate conditions: T1-TSI
• Minimum curve radius (Rmin): 75.0 m and 150.0 m
• Length over buffers: 32,230 mm
• Underframe length: 2 x 15,175 mm
• Loading length: 30,990 mm
• Loading height (except the wagon ends): 1,000 mm
• Wheel diameter: 840 mm
• Tare weight: 28.7 t
• Floor vertical tyre load capacity: 1.0 t per tyre
• Foldable flap wheel/tyre load capacity: up to 2 t
• Corrosion protection: hot dip galvanization for running surfaces and wheel chocks
• Standards/compliance: TSI, EN, UIC; TEN GE marking
