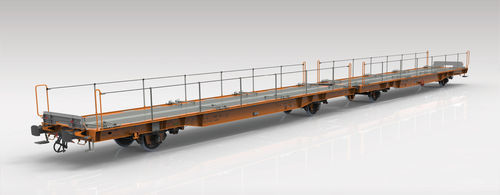

Wheeled carrier Laadgrs L04A

for containers

Features

• This wagon is designed for the transportation of automobiles, vans and ISO containers (20', 30', 40').
• For transport of vehicles the wagon is equipped with 32 wheel chocks.
• The lower floor is designed to drain rainwater and is made of galvanized grate bridging plates.
• The floor can withstand a vertical load of 1.0 t per rubber tyre.
• For transport of containers flip-down spigots must be installed.
• Designed according to TSI, EN and Group Standards for EU traffic operation.

Capabilities

• Loading configurations depend on vehicle dimensions.
• Transport of vehicles with weight up to 3.0 t (up to 3.2 t subject to agreement).
• Maximum vertical wheel load: 1.0 t per rubber tyre.
• Dedicated to transport of ISO containers 20', 30', 40' (wheel chocks must be removed for container transport).
• Container arrangement according to UIC 571-4, attachment A drawing 3.

Table of load limits (based on the wheelset payload 22.5 t)
S, 33.3 t, 41.3 t, 49.3 t, 59.3 t
120 km/h, 0.0 t, 0.0 t, 0.0 t, 0.0 t

Parameters
Wagon length over buffers: 33,000 mm
Underframe length: 15,560 mm
Buffer / coupler axis height above top of rail: 1,040 / 1,020 mm
(empty, new wagon) ???: 10,000 mm
Wheelbase: 26,200 mm
Distance between end axles: 920 mm
Wheel diameter: C810
Brake blocks: KE-GP-A(K)-2×10"
Brake type: Operated from ground level
Parking brake: Category A, stroke 105 mm
Buffer type: 850 kN
Screw coupling on the end of the unit: 1,200 kN
Draw gear in the middle of the unit: 1,200 kN
Short crew coupling in the middle of the unit: DAC (depends on future developments, agreements)
Automatic coupler adjustment (UIC 530-1): subject to agreements
Weight of empty wagon: Approx. 30.7 t
Maximum load weight: 59.30 t
Maximum axle load: 22.50 t
Loading length: Approx. 32,000 mm
Height of lower deck to rail level (empty wagon, new condition) for containers: 1,180 mm
Height of lower deck to rail level (empty wagon, new condition) for vehicles: 1,165 mm
Loading gauge: G1 EN 15273-2

Measurements
All measurements are in millimeters.

Technical specifications

• Model: Laadgrs L04A
• Designed for automobiles, vans and ISO containers (20', 30', 40').
• 32 wheel chocks provided for vehicle transport (must be removed for container transport).
• Galvanized grate bridging plates on lower floor to drain rainwater.
• Floor vertical load capacity: 1.0 t per tyre.
• Vehicle weight capability: up to 3.0 t (3.2 t subject to agreement).
• Maximum axle load: 22.50 t.
• Empty weight: approx. 30.7 t; Max load weight: 59.30 t.
• Wagon length over buffers: 33,000 mm; Loading length approx. 32,000 mm.
• Wheelbase: 26,200 mm; Wheel diameter: C810.
• Brake system: ground-operated; Parking brake category A, stroke 105 mm; Brake blocks: KE-GP-A(K)-2×10".
• Coupling and draw gear capacities: end screw coupling 1,200 kN; draw gear middle 1,200 kN; buffers 850 kN.
• Designed according to TSI, EN and Group Standards for EU operation.
