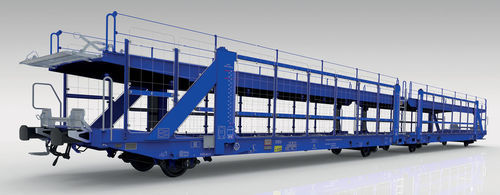

Wheeled carrier Laaers L07A

platform

Features

• Laaers wagon type L07A is designed for transportation of automobiles and vans on standard 1,435 mm gauge lines and on 1,668 mm gauge lines (Spain).
• The underframe is designed to allow exchangeable wheelsets according to the scheme in UIC leaflet 430-1.
• The wagon is fitted with a staff safety railing on the upper deck and wire-mesh protection plates on the lower deck.
• Running decks are treated with an anti-skid coating.
• The upper loading platform is smoothly adjustable from 1,500 mm to 3,350 mm above rail head. Lifting is carried out by a spindle system consisting of:
  • an overload clutch in the drive gear to prevent damage at travel limits,
  • a special locking device preventing self-lowering of the upper deck,
  • additional locking devices protecting the whole lifting system against self-lowering during running.
• Designed in compliance with TSI, EN and Group Standards for GE traffic operation.

Capabilities

• Upper loading platform adjustable from 1,500 mm up to 3,350 mm above rail head to accommodate different loading configurations.
• Can transport vehicles with weight up to 2.8 t (depending on vehicle dimensions).
• Maximum horizontal wheel force from transported vehicle up to 1.0 t.
• Loading arrangements depend on vehicle dimensions; upper deck can be lowered to 1,500 mm to use the wagon as a flat wagon.
• Wagon equipped with 56 wheel blockers operable by foot for rapid securing of vehicles.

Table of load limits
basing on the payload of wheelsets (18 t):

• A: 30 t
• B: 34 t
• C: 34 t
• S: 30 t
• 120 kph: 00.0 t / 00.0 t / 00.0 t

Parameters

• Wagon length over buffers: 31,000 mm
• Underframe length: 14,560 mm
• Buffer / coupler axis height above ToR (empty, new car): 1,040 / 1,020 mm
• Wheelbase: 10,000 mm
• Distance between end axles: 25,200 mm
• Wheel diameter: 760 mm
• Brake blocks: Jurid 816 M
• Brake type: KE-GP-A(K)-2×10"
• Parking brake: Operated from ground level
• Buffer type: Category A, Stroke 105 mm
• Screw coupling on the end of the unit: 850 kN
• Draw gear with draw hook on the end of the unit: 1,000 kN
• Draw gear in the middle of the unit: 1,200 kN
• Short crew coupling in the middle of the unit: 1,200 kN
• Automatic coupler adjustment (UIC 530-1): No
• Weight of empty wagon: Approx. 34 t*
• Maximum load weight: 34.0 t
• Maximum axle load: 18.0 t
• Maximum load on the lower deck: 17.0 t
• Maximum load on the upper deck: 17.0 t (18.0 t in flat wagon position)

Measurements
All measurements are in millimeters.

Technical specifications

• Model: Laaers L07A
• Track gauges supported: 1,435 mm (standard) and 1,668 mm (Spain)
• Upper loading platform adjustable range: 1,500 mm – 3,350 mm above rail head
• Vehicle transport capacity per vehicle: up to 2.8 t (depending on vehicle dimensions)
• Maximum horizontal wheel force from transported vehicle: up to 1.0 t
• Number of wheel blockers: 56 (operable by foot)
• Running decks: anti-skid coating
• Upper deck protection: staff safety railing
• Lower deck protection: wire mesh protection plates
• Underframe: designed for exchangeable wheelsets according to UIC leaflet 430-1
• Standards: Designed according to TSI, EN, Group Standards for GE traffic operation
• Wagon length over buffers: 31,000 mm
• Underframe length: 14,560 mm
• Buffer / coupler axis height above ToR (empty, new car): 1,040 / 1,020 mm
• Wheelbase: 10,000 mm
• Distance between end axles: 25,200 mm
• Wheel diameter: 760 mm
• Brake blocks: Jurid 816 M
• Brake Type: KE-GP-A(K)-2×10"
• Parking brake: Operated from ground level
• Buffer type: Category A, Stroke 105 mm
• Screw coupling on end: 850 kN
• Draw gear (end): 1,000 kN
• Draw gear (middle): 1,200 kN
• Short crew coupling (middle): 1,200 kN
• Automatic coupler adjustment (UIC 530-1): No
• Empty wagon weight: Approx. 34 t*
• Maximum load weight: 34.0 t
• Maximum axle load: 18.0 t
• Maximum lower deck load: 17.0 t
• Maximum upper deck load: 17.0 t (18.0 t in flat wagon position)
