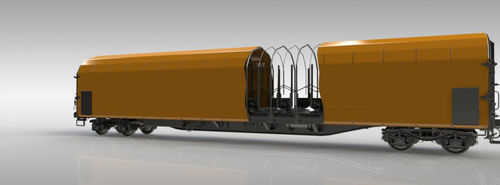

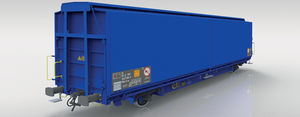

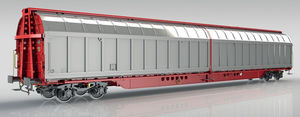

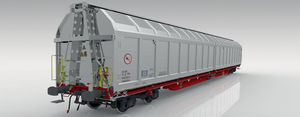

Wheeled carrier Rils-y 653

coil

Features

• Flat wagon designed for transport of wire coils that require protection from weather conditions.
• Equipped with a saddle frame to support coils; saddle contact surfaces are covered with 35 mm oak wood. Side saddle frame is fitted with 6 pairs of stanchions, 24 stanchions in total.
• Contact areas of stanchions are covered with plastic to protect the coils.
• Wagon design complies with TSI, EN and UIC requirements and carries TEN GE marking for traffic operation.

Capabilities

• Wire coils can be loaded in two layers from the top by crane (first layer: 13 pcs, second layer: 12 pcs).
• The first layer of coils is positioned on the saddle frame and the second layer is placed above the first.
• Coils are secured laterally by adjustable stanchions with 50 mm incremental shifts.

Loading scheme
Loading scheme illustration is available on the product page showing coil placement and saddle arrangement.

Technical specifications

• Axle load: 22.5 t / axle
• Track gauge: 1,435 mm
• Loading gauge: G1-TSI
• Brake regime: S
• Brake type: GP-A (K)
• Max. speed for 90.0 t: 100 km/h
• Max. speed (unloaded): 120 km/h
• Climate condition: T1
• Rmin: 50.0 m
• Length over buffers: 20,000 mm
• Loading length (between end walls): 18,510 mm
• Loading width (saddles): 2,200 / 1,150 mm
• Loading width (stanchions): 2,400 / 1,200 mm
• Tare weight: Max. 30.0 t
• Payload: ~ 60.0 t
• Loading height (saddle supports seating): 1,200 mm from T.O.R.
• Bogie type: Y25Ls1-K
