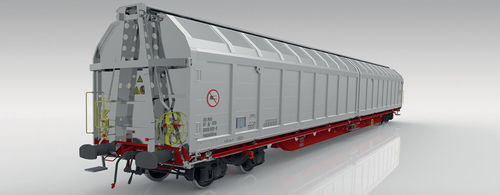

Wheeled carrier H01A

for pallet

Features

• The covered multipurpose 4-axle wagon is designed for transportation of large-volume goods and palletized cargo.
• Aluminium side walls protect cargo from atmospheric conditions.
• The wagon can be fitted with internal sliding partition walls to subdivide the loading space.
• Design complies with TSI, EN and UIC standards and carries TEN GE marking for traffic operation.

Capabilities

• Side walls are operable by one person from ground and ramp level.
• Side-wall operation is possible from all four corners of the wagon.
• Partition walls provide flexible accommodation of different load configurations.
• Partition walls are designed for single-person handling.

Parameters
Axle load : 25,0 t / axle
Track gauge : 1,435 mm
Loading gauge : G1-TSI
Brake regime : "S"
Max. speed at 100,0 t : 100 km/h
Max. speed at (unloaded) : 120 km/h
Climate condition : T1
Rmin : 60,0 m
Tare weight : 28,8 t (with 5 sliding walls), 27,4 t (without sliding walls)
Payload : 71,2 t (with 5 sliding walls), 72,6 t (without sliding walls)
Internal length : 22,000 mm
Internal width : 2,840 mm
Internal height : 2,800 mm
Door opening : 10,820 mm
Bogie type : Y25

Note
The descriptions provided herein are for general information purposes only.

Technical specifications

• Axle load: 25,0 t / axle
• Track gauge: 1,435 mm
• Loading gauge: G1-TSI
• Brake regime: "S"
• Max. speed at 100,0 t: 100 km/h
• Max. speed (unloaded): 120 km/h
• Climate condition: T1
• Rmin: 60,0 m
• Tare weight: 28,8 t (with 5 sliding walls); 27,4 t (without sliding walls)
• Payload: 71,2 t (with 5 sliding walls); 72,6 t (without sliding walls)
• Internal length: 22,000 mm
• Internal width: 2,840 mm
• Internal height: 2,800 mm
• Door opening: 10,820 mm
• Bogie type: Y25
