Wheeled carrier Habbii(ll)ns 352
for pallet

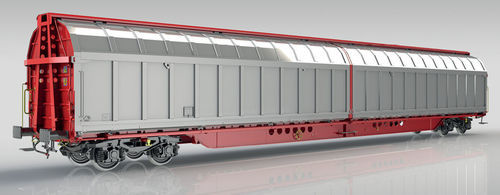

Wheeled carrier - Habbii(ll)ns 352 - Greenbrier Europe - for pallet
Wheeled carrier - Habbii(ll)ns 352 - Greenbrier Europe - for pallet
Wheeled carrier - Habbii(ll)ns 352 - Greenbrier Europe - for pallet - image - 2
Add to favorites
Compare this product

Characteristics

Locomotion
wheeled
Options
for pallet
Load capacity

62.6 t
(69 us ton)

Description

Features
  • This covered multi-purpose freight wagon is used for transportation of large-volume goods as well as palletised cargo. The transported goods are protected against atmospheric agents.
  • The wagon ("ll") is equipped with an intermediate-wall system. Four intermediate walls are available as an optional order.
  • The wagon design meets the requirements of TSI, EN and UIC standards and carries TEN GE marking for traffic operation.


Capabilities
  • The side walls can be handled by a single person and allow 50% of the wagon to be opened.
  • The large loading area is accessible from ramps on both sides by industrial trucks.
  • With special crane equipment, top loading is possible thanks to a narrow roof beam.
  • The entire wagon space can be divided with intermediate walls into smaller separate loading sections.
  • Intermediate walls also serve to secure the transported load against longitudinal movement during transport.


Technical specifications
  • Axle load: 22.5 t / axle
  • Track gauge: 1,435 mm
  • Loading gauge: G1-TSI
  • Brake regime: "S"
  • Brake type: GP-A (K)
  • Max. speed at 90.0 t: 100 km/h
  • Max. speed (unloaded): 120 km/h
  • Climate condition: T1
  • Rmin: 60.0 m
  • Length over buffers: 23,900 mm
  • Loading length: 22,640 mm
  • Loading width: 2,820 mm
  • Loading area (ll): 63.3 m² (62.05 m²)
  • Wagon volume (ll): 170.0 m³ (168.7 m³)
  • Tare weight (ll): ~ 27.4 t (~ 28.8 t)
  • Payload (ll): ~ 62.6 t (~ 62.2 t)
  • Floor height: 1,200 mm
  • Bogie type: BA 629.4 (K)
  • Number of euro pallets: 63
