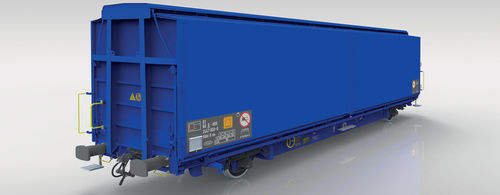

Wheeled carrier Hbbillns

for pallet

Features

• Two-axle covered wagon designed for transportation of large-volume and palletized goods.
• Transported goods are protected against weather conditions by the covered body.
• Wagon is loaded from both sides via sliding walls/ramps.
• The wagon is equipped with an intermediate wall system to subdivide the load space.
• Design complies with TSI, EN and UIC standards and carries TEN GE marking for traffic operation.

Capabilities

• Large loading area accessible from ramps on both sides for industrial trucks.
• Internal space can be divided with the intermediate wall into separate loading sections.
• Intermediate wall also secures transported cargo against longitudinal movement during transport operations.
• Wagon is fitted with weigh valves allowing partial loading and load monitoring.

Parameters
Axle load: 22.5 t / axle
Track gauge: 1,435 mm
Loading gauge: G2/PC400
Brake regime: "S"
Brake shoe: Jurist 816M
Max. speed at 90,0 t: 100 km/h
Max. speed (unloaded): 120 km/h
Climate condition: T1
Rmin: 60.0 m
Tare weight: 16,5 t
Payload: 28.5 t
Internal length: 14,635 m
Loading area: 38.3 m2


Note
The descriptions provided herein are for general information purposes only.


Technical specifications

• Axle load: 22.5 t / axle
• Track gauge: 1,435 mm
• Loading gauge: G2/PC400
• Brake regime: "S"
• Brake shoe: Jurist 816M
• Max. speed at 90,0 t: 100 km/h
• Max. speed (unloaded): 120 km/h
• Climate condition: T1
• Minimum curve radius (Rmin): 60.0 m
• Tare weight: 16,5 t
• Payload: 28.5 t
• Internal length: 14,635 m
• Loading area: 38.3 m2
