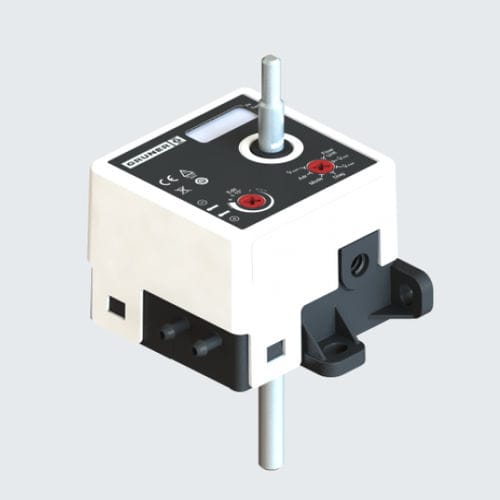

Electric damper actuator 309VM-024-150 linearIP54compact
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Protection class
- IP54
- Other characteristics
- compact, for HVAC installation pressure control, for HVAC installation volumetric flow contrôl
- Actuator force
150 N
- Stroke
30 mm, 80 mm, 130 mm, 200 mm
(1.2 in, 3.1 in, 5.1 in, 7.9 in)- Voltage
24 V
- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)- Weight
450 g
(15.87 oz)
Description
Linear spindle actuator for adjusting under floor diffusers, spin air diffusers and jet nozzles for pressure and volumetric flow control in HVAC installations
•Force150 N
•Nominal voltage24 VAC/DC
(0)4...20 mA / Rext. = 500 Ω
Feedback signal : (0)2...10 VDC, max. 0,5 mA
Priority control : closed / Vmin / Vbtw / Vmax / open
Connection motor : cable 1000 mm,
4 x 0,75 mm² (halogen free)
Connection GUIV : via diagnostic connector and
feedback signal U
Communication : PP-Bus (1200 Bd, max. 15 VDC)
Sensor
Calibration : 250 Pa, height adjustment necessary
(300 Pa = 1,2 in H2O), dynamic measurement principle
Measuring range : 0...300 Pa
Burst pressure : 1 bar
Nominal value : damper manufacturer specific value
Vmin / Vbtw / Vmax based on Vnom
Media : air
non condensing
Mounting position : independent of position
Connection : Ultem 2200 / tube clip Ø 4-6 mm
