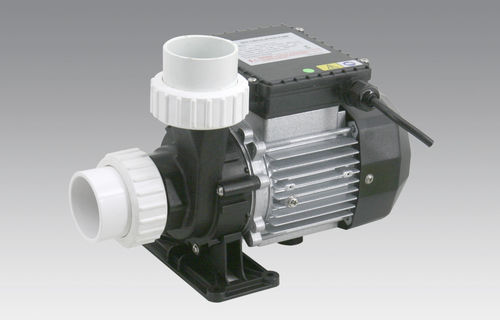

Impeller pump WE10 with electric motorself-primingstationary
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- service, outlet
- Voltage
- 220 V, 115 V
- Protection level
- IP55
- Other characteristics
- compact, mechanical
- Flow
2.4 m³/h
(84.7552 ft³/h)- Pressure
0.3 MPa
- Head
8.5 m
(27'10" )- Power
180 W
(0.24 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)- Length
243 mm
(10 in)- Width
146 mm
(5.75 in)- Height
152 mm
(5.98 in)- Weight
3.65 kg
(8.05 lb)
Description
Thermal protector：single phase
Insulation：F
-The flow of pump components using high strength engineering plastics,equipped with special sic mechanical seals.
-Compact design,small size,save space.
-Low noise,high efficiency and long service life.
-Electic pump outlet direction adjustable(12 o'clock direction and 9 o'clock direction).
-Inlet and outlet size same as E10 OF LAING company.
