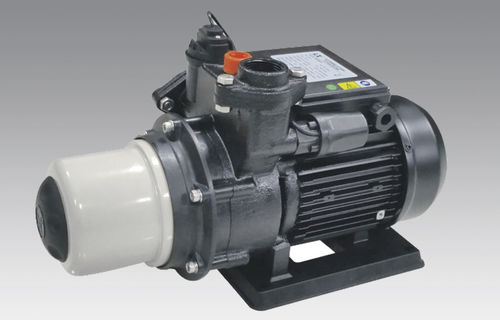

Centrifugal pump DAH serieswaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- booster
- Voltage
- 220 V
- Other characteristics
- compact, automatic
- Flow
1.5 m³/h, 2.4 m³/h
(52.972 ft³/h, 84.7552 ft³/h)- Head
14 m, 20 m, 23 m
(45'11" , 65'07" , 75'05" )- Power
0.2 kW, 0.4 kW, 0.55 kW
(0.27 hp, 0.54 hp, 0.75 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)- Length
402 mm, 420 mm
(16 in, 17 in)- Width
184 mm
(7.24 in)- Height
232 mm
(9.13 in)- Weight
10 kg, 10.5 kg, 12 kg
(22.05 lb, 23.15 lb, 26.46 lb)
Description
Thermal protector：single phase
Insulation：F
Novel intelligent anhydrous power off device
The DAH series booster system is an all-in-one compact and reliable automatic multistage centrifugal booster pump,which integrates motor,pump,accumulator,pressure switch and flow switch in one set.the flow switch equipped with DAH pump can prevent the pump from continuously starting and stopping under small discharge,and provide stable water supply;also the pump will turn off automatically in 60 seconds if dry-running occurs,it can protect motor from burnout,it is very suitable for domestic water supply.
