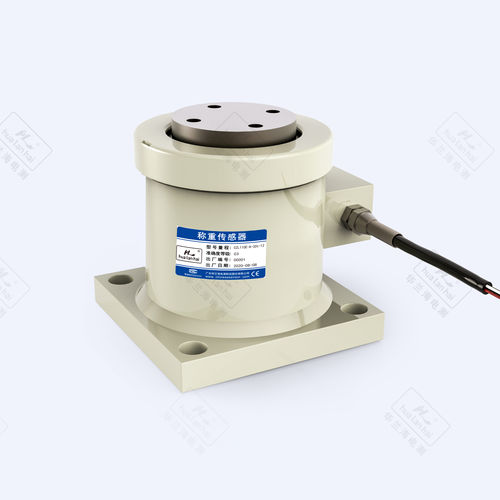

Compression load cell CZL110E-A
canisterfor truck scaleIP68

compression load cell
compression load cell
Add to favorites
Compare this product


Characteristics

Type
compression
Form
canister
Applications
for truck scale
Other characteristics
IP68, rugged
Rated load

10 t, 20 t, 30 t, 40 t
(11.02 us ton, 22.05 us ton, 33.07 us ton, 44.09 us ton)

Height

107 mm
(4.21 in)

Description

Column load cell is a sensor used for engineering force detection, overload safety detection and impact force measurement and control. It is suitable for sealed treatment and harsh environment. Suitable for large platform scale, truck scale, track scale, etc. Six wire wiring mode can be selected. The column load cell has a large range and is widely used in the field of heavy industry. Expansion of column sensor,compared with 110E, the column sensor has lower height and lower bottom mounting size. No additional pressure head, with mounting hole at the top, height 107. Precision C2/C3 Composition error ±0.03 & ±0.02% FS Rated output 2.0±0.01 mV/V Creep ±0.023 & ±0.016% FS/30min Zero balance ±1.5% FS Input resistance 700±10Ω Output resistance 700±5Ω Insulation resistance ≥5000 MΩ(100VDC) Temp.effect on span ±0.017 & ±0.011% FS/10℃ Temp.effect on zero ±0.029 & ±0.019% FS/10℃ Compensated temp.range -10℃ ~ +40 ℃ Use temp.range -30℃ ~ +70 ℃ Excitation voltage 10VDC ~ 12VDC Safe overload 150% Ultimate overload 200%
