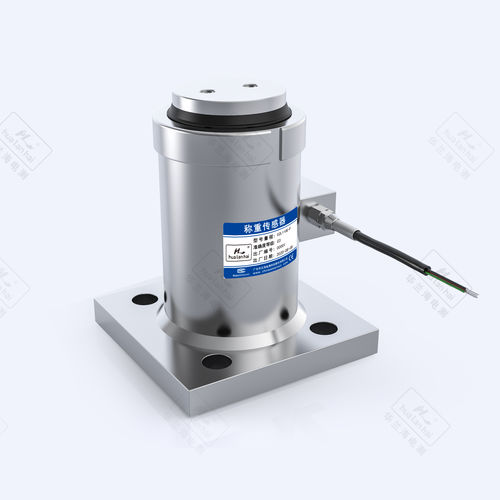

Compression load cell DS110E-F
canisterweighingfor weighbridges

compression load cell
compression load cell
Add to favorites
Compare this product

Go to the Guangdong South China Sea Electronic Measuring Tec website for more information

Characteristics

Type
compression
Form
canister
Applications
weighing, for weighbridges
Other characteristics
stainless steel, IP68
Rated load

10 t, 20 t, 30 t, 40 t
(11.02 us ton, 22.05 us ton, 33.07 us ton, 44.09 us ton)

Description

Expansion of column sensor,compared with 110e, the material is changed to stainless steel, and the installation height can reach 188 and 214 with additional indenter. Accuracy class C2/C3 Composition error ±0.03 & ±0.02% FS Rated output 1,000,000 counts Creep ±0.023 & ±0.016% FS/30min Temp.effect on span ±0.017 & ±0.011% FS/10℃ Temp.effect on zero ±0.029 & ±0.019% FS/10℃ Compensated temp.range -10℃ ~ +40 ℃ Use temp.range -30℃ ~ +70 ℃ Excitation voltage 10VDC ~ 12VDC Baud rate 9600 bps Communication interface RS485/RS232 Data refresh rate 50 Hz Nmax 5000 Number of bus addresses 32 Maximum transmission distance 1000 m Safe overload 150% Ultimate overload 200%
