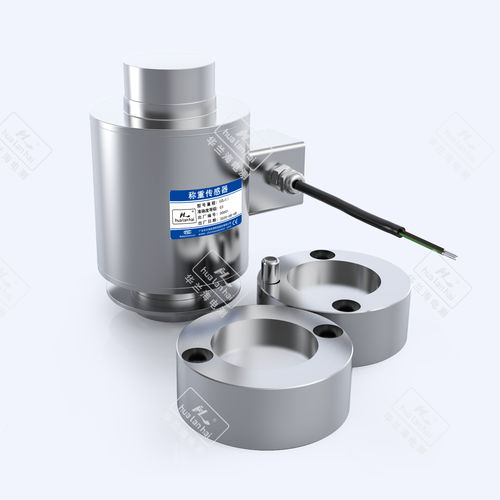

Compression load cell CZL425

canisterfor truck scalestainless steel

Column load cell is a sensor used for engineering force detection, overload safety detection and impact force measurement and control. It is suitable for sealed treatment and harsh environment. Suitable for large platform scale, truck scale, track scale, etc. Six wire wiring mode can be selected. The column load cell has a large range and is widely used in the field of heavy industry. Stainless steel column sensor with indenter, mounting height 200. Precision C2/C3 Composition error ±0.03 & ±0.02% FS Rated output 2.0±0.01 mV/V Creep ±0.023 & ±0.016% FS/30min Zero balance ±1.5% FS Input resistance 700±10Ω Output resistance 700±5Ω Insulation resistance ≥5000 MΩ(100VDC) Temp.effect on span ±0.017 & ±0.011% FS/10℃ Temp.effect on zero ±0.029 & ±0.019% FS/10℃ Compensated temp.range -10℃ ~ +40 ℃ Use temp.range -30℃ ~ +70 ℃ Excitation voltage 10VDC ~ 12VDC Safe overload 150% Ultimate overload 200%
