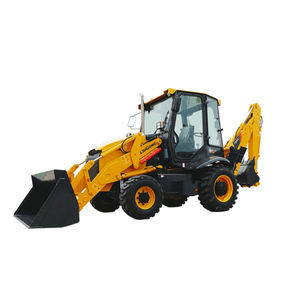

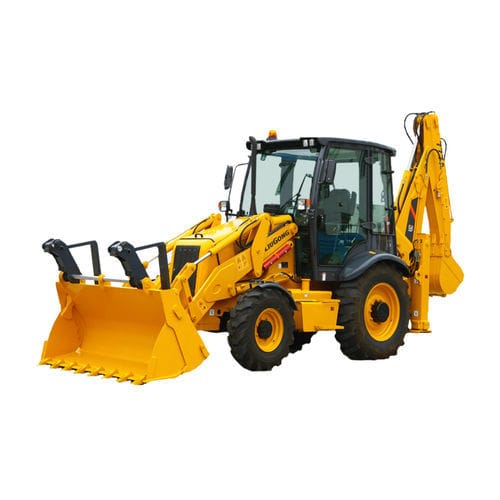

Rigid backhoe loader CLG777A series

Overview

• Reliable engine and wet axles. Frame designed for high resistance and efficient load distribution ensuring longer life.
• Tandem gear pump enables fine grading and has flow control via dashboard switch. Power assisted service brakes reduces fatigue.
• Spacious cab offers wide range of view. More ergonomically designed handrail and steps for safe and easy entry/exit.
• Open front grill gives easy access for cooling system cleaning which is great for dusty conditions, battery access and electric maintenance.

Key specifications

• Operating weight: 8,400 kg
• Digging depth: 4,440 mm
• Industries: Agriculture; Oil & Gas

Technical specifications - CLG777A / Perkins III
Gross Power: 74.5 kW (100 hp) @ 2200 rpm
Maximum Digging Depth: 4,440 mm
Turning Radius Outside of Front Tire w/o single braking: 4,400 mm
Bucket Digging Force: 58.2 kN
Loading Height (Digging): 3,554 mm
Emission Standard: Stage III
Standard Backhoe Bucket Heaped Capacity: 0.2 m³
Operating Weight: 8,400 kg
Maximum speed: 5.9-36 km/h
Bucket Breakout Force, General bucket: 59.3 kN
Maximum Dump Height (Loading): 2,691 mm
Model (engine): Perkins 1104D-44TA
Standard Bucket Heaped Capacity: 1 m³

Technical specifications - CLG777A / Weichai II
Gross Power: 70 kW (94 hp) @ 2200 rpm
Maximum Digging Depth: 4,440 mm
Turning Radius Outside of Front Tire w/o single braking: 4,400 mm
Bucket Breakout Force, General bucket: 59.3 kN
Maximum Dump Height (Loading): 2,691 mm
Model (engine): Weichai WP4G95E221
Standard Bucket Heaped Capacity: 1 m³
Operating Weight: 8,400 kg
Maximum speed: 5.9-36 km/h
Turning Radius Outside of Bucket w/o single braking: 5,554 mm
Bucket Digging Force: 58.2 kN
Loading Height (Digging): 3,554 mm
Emission Standard: Stage II
Standard Backhoe Bucket Heaped Capacity: 0.2 m³

Technical specifications

• Model: CLG777A
• Operating weight: 8,400 kg
• Maximum digging depth: 4,440 mm
• Gross power (Perkins option): 74.5 kW (100 hp) @ 2200 rpm
• Gross power (Weichai option): 70 kW (94 hp) @ 2200 rpm
• Engine models: Perkins 1104D-44TA; Weichai WP4G95E221
• Emission standards: Stage III (Perkins); Stage II (Weichai)
• Maximum speed: 5.9-36 km/h
• Turning radius outside of front tire w/o single braking: 4,400 mm
• Turning radius outside of bucket w/o single braking: 5,554 mm (Weichai spec)
• Bucket digging force: 58.2 kN
• Bucket breakout force (general bucket): 59.3 kN
• Loading height (digging): 3,554 mm
• Maximum dump height (loading): 2,691 mm
• Standard bucket heaped capacity: 1 m³
• Standard backhoe bucket heaped capacity: 0.2 m³
