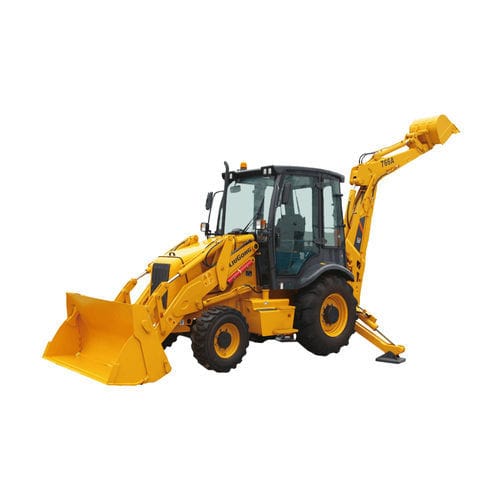

Telescopic backhoe loader CLG766A series
ergonomic

Telescopic backhoe loader - CLG766A series - Guangxi Liugong Machinery Co., Ltd. - ergonomic
Telescopic backhoe loader - CLG766A series - Guangxi Liugong Machinery Co., Ltd. - ergonomic
Telescopic backhoe loader - CLG766A series - Guangxi Liugong Machinery Co., Ltd. - ergonomic - image - 2
Add to favorites
Compare this product

Characteristics

Type
telescopic
Other characteristics
ergonomic
Operating weight

8,100 kg
(17,857.4 lb)

Motor power

Min.: 70 kW
(95.17 hp)

Max.: 74.5 kW
(101.29 hp)

Description

Key specifications
  • Operating weight: 8,100 kg
  • Maximum digging depth: 4,440 mm
  • Gross Power (Perkins III): 74.5 kW (100 hp) @ 2200 rpm
  • Gross Power (Weichai II): 70 kW (94 hp) @ 2200 rpm
  • Standard bucket heaped capacity: 1 m³
  • Standard backhoe bucket heaped capacity: 0.2 m³
  • Bucket digging force: 58.2 kN
  • Bucket breakout force (general): 59.3 kN
  • Maximum speed: 5.9 - 36 km/h
  • Emission standard: Stage III (Perkins) / Stage II (Weichai)


Description
  • Robust integrated frame and wet axles designed for prolonged operation and optimized load distribution.
  • Tandem gear pump with dashboard flow control provides fine grading capability; power-assisted service brakes reduce operator fatigue during long shifts.
  • Panoramic cabin with wide visibility, ergonomic handrails and steps for safe entry/exit; ROPS/FOPS-compliant layout improves on-site safety.
  • Front grill and engine cover designed for easy access to cooling system, battery and electrical components to simplify maintenance in dusty environments.
  • Optional telescopic boom and mid-mounted stabilizers (independent control) adapt the machine for deeper excavation or confined job sites.


Technical specifications — CLG766A / 766A Perkins III
  • Gross Power: 74.5 kW (100 hp) @ 2200 rpm
  • Maximum Digging Depth: 4,440 mm
  • Turning Radius Outside of Front Tire w/o single braking: 4,400 mm
  • Turning Radius Outside of Front Tire w/ single braking: 3,450 mm
  • Bucket Digging Force: 58.2 kN
  • Loading Height (Digging): 3,554 mm
  • Emission Standard: Stage III
  • Standard Backhoe Bucket Heaped Capacity: 0.2 m³
  • Operating Weight: 8,100 kg
  • Maximum speed: 5.9 - 36 km/h
  • Turning Radius Outside of Bucket w/o single braking: 5,554 mm
  • Bucket Breakout Force, General bucket: 59.3 kN
  • Maximum Dump Height (Loading): 2,691 mm
  • Model: Perkins 1104D-44TA
  • Standard Bucket Heaped Capacity (loader): 1 m³


Technical specifications — CLG766A / 766A Weichai II
  • Gross Power: 70 kW (94 hp) @ 2200 rpm
  • Maximum Digging Depth: 4,440 mm
  • Turning Radius Outside of Front Tire w/o single braking: 4,400 mm
  • Turning Radius Outside of Front Tire w/ single braking: 3,450 mm
  • Bucket Digging Force: 58.2 kN
  • Loading Height (Digging): 3,554 mm
  • Emission Standard: Stage II
  • Standard Backhoe Bucket Heaped Capacity: 0.2 m³
  • Operating Weight: 8,100 kg
  • Maximum speed: 5.9 - 36 km/h
  • Turning Radius Outside of Bucket w/o single braking: 5,554 mm
  • Bucket Breakout Force, General bucket: 59.3 kN
  • Maximum Dump Height (Loading): 2,691 mm
  • Model: Weichai WP4G95E221
  • Standard Bucket Heaped Capacity (loader): 1 m³


Additional technical data
  • Model (commercial): CLG766A
  • Operating weight: 8,100 kg
  • Maximum digging depth: 4,440 mm
  • Gross Power (Perkins III / Weichai II): 74.5 kW (100 hp) / 70 kW (94 hp) @ 2200 rpm
  • Emission standards: Stage III (Perkins) / Stage II (Weichai)
  • Bucket digging force: 58.2 kN
  • Bucket breakout force (general bucket): 59.3 kN
  • Loading height (digging): 3,554 mm
  • Maximum dump height (loading): 2,691 mm
  • Turning radii (front tire w/o single braking / w/ single braking): 4,400 mm / 3,450 mm
  • Turning radius outside of bucket w/o single braking: 5,554 mm
  • Maximum speed: 5.9 - 36 km/h
  • Standard backhoe bucket heaped capacity: 0.2 m³
  • Standard loader bucket heaped capacity: 1 m³
  • Engine models: Perkins 1104D-44TA / Weichai WP4G95E221
