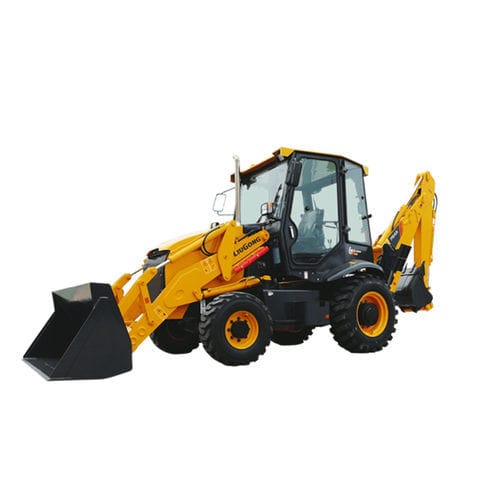

Rigid backhoe loader CLG764A series

standard

Overview

• Reliable engine and wet axles. Frame is designed for high resistance and efficient load distribution to extend service life.
• Tandem gear pump enables fine grading and offers flow control via dashboard switch. Power-assisted service brakes reduce operator fatigue.
• Spacious cab provides a wide field of view. Ergonomically designed handrails and steps ensure safe and easy entry/exit.
• Open front grill allows easy access for cleaning the cooling system, battery access and electrical maintenance in dusty conditions.

Key specifications
Operating weight: 8,100 kg
Digging depth: 4,440 mm

CLG764A — 764A Yuchai II (table)
Rated Power: 81 kW (109 hp / 110 ps) @ 2,200 rpm
Maximum Digging Depth: 4,440 mm
Turning Radius Outside of Front Tire w/o single braking: 4,440 mm
Bucket Digging Force: 52.1 kN
Loading Height (Digging): 3,554 mm
Emission Standard: MAR-1
Standard Backhoe Bucket Heaped Capacity: 0.2 m³
Operating Weight: 8,100 kg
Maximum speed: 5.3 - 37 km/h
Bucket Breakout Force, General bucket: 52 kN
Maximum Dump Height (Loading): 2,691 mm
Model: Yuchai YCKA05K110-M300
Standard Bucket Heaped Capacity: 1 m³

CLG764A — 764A Yuchai III (table)
Gross Power: 81 kW (108 hp)
Operating Weight: 8,300 kg
Maximum speed: 9.8 - 44 km/h
Turning Radius Outside of Bucket w/o single braking: 5,850 mm
Bucket Digging Force: 52.1 kN
Loading Height (Digging): 3,586 mm
Emission Standard: Brazil Stage III
Standard Backhoe Bucket Heaped Capacity: 0.2 m³
Net Power: 81 kW (108 hp)
Maximum Digging Depth: 4,440 mm
Turning Radius Outside of Front Tire w/o single braking: 4,800 mm
Bucket Breakout Force, General bucket: 52 kN
Maximum Dump Height (Loading): 2,691 mm
Model: Yuchai YCA05K110-M300
Standard Bucket Heaped Capacity: 1 m³

Technical specifications

• Model: CLG764A
• Brand: LiuGong
• Engine models: Yuchai YCKA05K110-M300 (Yuchai II), Yuchai YCA05K110-M300 (Yuchai III)
• Rated/Gross/Net Power: 81 kW (109 hp / 110 ps) @ 2,200 rpm (Yuchai II); 81 kW (108 hp) (Yuchai III)
• Operating weight: 8,100 kg (Yuchai II); 8,300 kg (Yuchai III)
• Maximum digging depth: 4,440 mm
• Turning radius outside of front tire (w/o single braking): 4,440 mm (Yuchai II); 4,800 mm (Yuchai III)
• Turning radius outside of bucket (w/o single braking): 5,850 mm (Yuchai III)
• Bucket digging force / breakout force: 52.1 kN (digging); 52 kN (breakout, general bucket)
• Loading height (digging): 3,554 mm (Yuchai II); 3,586 mm (Yuchai III)
• Maximum dump height (loading): 2,691 mm
• Standard backhoe bucket heaped capacity: 0.2 m³
• Standard bucket heaped capacity: 1 m³
• Maximum speed: 5.3 - 37 km/h (Yuchai II); 9.8 - 44 km/h (Yuchai III)
• Emission standard: MAR-1 (Yuchai II); Brazil Stage III (Yuchai III)
