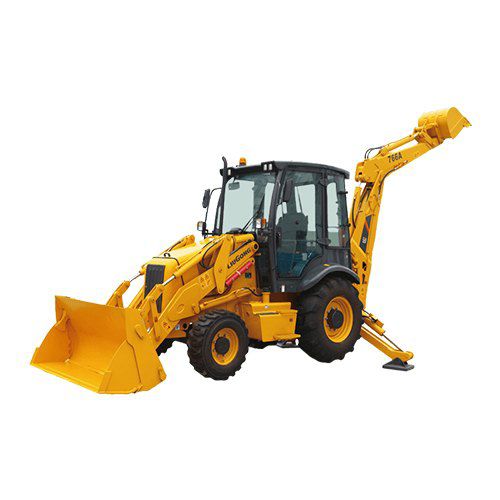

Rigid backhoe loader CLG775A series

Rigid backhoe loader - CLG775A series - Guangxi Liugong Machinery Co., Ltd.
Rigid backhoe loader - CLG775A series - Guangxi Liugong Machinery Co., Ltd.
Add to favorites
Compare this product

Characteristics

Type
rigid
Operating weight

8,600 kg
(18,959.8 lb)

Motor power

Min.: 70 kW
(95.17 hp)

Max.: 75 kW
(101.97 hp)

Description

Key specifications
  • Operating weight: 8,600 kg
  • Maximum digging depth: 4,440 mm
  • Standard bucket heaped capacity: 1 m³
  • Gross power: 75 kW (101 hp) @ 2200 rpm (Yuchai II) / 70 kW (94 hp) @ 2200 rpm (Yuchai III)


Overview
  • Durable frame and wet axles designed for high resistance and efficient load distribution to extend service life.
  • Tandem gear pump provides fine grading control with dashboard flow switch. Power-assisted service brakes reduce operator fatigue.
  • Spacious cab with wide visibility and ergonomically positioned handrails and steps for safe access and egress.
  • Open front grill allows easy access to the cooling system for cleaning in dusty conditions, plus accessible battery and electrical components for maintenance.


Applications
  • Agriculture
  • Oil & Gas


Product Specifications — CLG775A / 775A Yuchai II
  • Model: Yuchai YC4A105Z-T20
  • Gross Power: 75 kW (101 hp) @ 2200 rpm
  • Net Power: 75 kW (101 hp) @ 2200 rpm
  • Operating Weight: 8,600 kg
  • Maximum Speed: 9.8–44 km/h
  • Maximum Digging Depth: 4,440 mm
  • Bucket Breakout Force (general bucket): 52.1 kN
  • Bucket Digging Force: 52.1 kN
  • Maximum Dump Height (Loading): 2,691 mm
  • Loading Height (Digging): 3,586 mm
  • Turning Radius Outside of Front Tire w/o single braking: 4,800 mm
  • Turning Radius Outside of Bucket w/o single braking: 5,850 mm (where applicable)
  • Standard Bucket Heaped Capacity: 1 m³
  • Standard Backhoe Bucket Heaped Capacity: 0.2 m³
  • Emission Standard: EPA Tier 2 / EU Stage II


Product Specifications — CLG775A / 775A Yuchai III
  • Model: Yuchai YC4A105T-311
  • Gross Power: 70 kW (94 hp) @ 2200 rpm
  • Net Power: 68 kW (91 hp) @ 2200 rpm
  • Operating Weight: 8,600 kg
  • Maximum Speed: 9.8–44 km/h
  • Maximum Digging Depth: 4,440 mm
  • Bucket Digging Force: 52.1 kN
  • Bucket Breakout Force (general bucket): 52 kN
  • Maximum Dump Height (Loading): 2,691 mm
  • Loading Height (Digging): 3,586 mm
  • Turning Radius Outside of Front Tire w/o single braking: 4,800 mm
  • Turning Radius Outside of Bucket w/o single braking: 5,850 mm
  • Standard Bucket Heaped Capacity: 1 m³
  • Standard Backhoe Bucket Heaped Capacity: 0.2 m³
  • Emission Standard: EPA Tier 3 / EU Stage III


Technical specifications
  • Model: CLG775A
  • Gross / Net Power: 75 kW (101 hp) @ 2200 rpm (Yuchai II) / 70 kW (94 hp) @ 2200 rpm (Yuchai III); Net: 75 kW (101 hp) / 68 kW (91 hp)
  • Operating Weight: 8,600 kg
  • Maximum Speed: 9.8–44 km/h
  • Maximum Digging Depth: 4,440 mm
  • Bucket Breakout / Digging Force: ≈52.1 kN (general bucket)
  • Maximum Dump Height (Loading): 2,691 mm
  • Loading Height (Digging): 3,586 mm
  • Turning Radius Outside of Front Tire: 4,800 mm
  • Turning Radius Outside of Bucket: 5,850 mm (Yuchai III)
  • Standard Bucket Heaped Capacity: 1 m³
  • Standard Backhoe Bucket Heaped Capacity: 0.2 m³
  • Engine models: Yuchai YC4A105Z-T20 (Yuchai II) / Yuchai YC4A105T-311 (Yuchai III)
  • Emission Standards: EPA Tier 2 / EU Stage II (Yuchai II); EPA Tier 3 / EU Stage III (Yuchai III)
