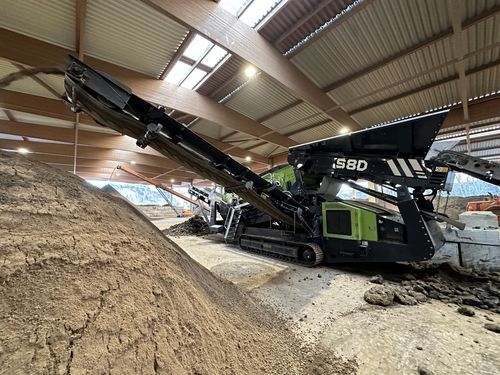

Dry screening screener S8Dfor miningfor recyclingfor crusher loading
Add to favorites
Compare this product
Characteristics
- Function
- dry screening
- Applications
- for mining, for recycling, for crusher loading
- Type
- mobile
- Material
- for bulk materials
- Weight
35,000 kg
(77,162 lb)- Capacity
Max.: 450 t/h
(276 lb/s)Min.: 200 t/h
(122 lb/s)- Engine power
129 kW
(175.39 hp)
Description
Main features
Applications
Technical parameters
Dimensions & transport
Notes
- High-capacity feeder for continuous material intake
- Wear-resistant hopper liner for extended service life
- Diesel drive suitable for remote sites
Applications
- Primary screening in quarries and aggregate plants
- Pre-screening and feeding for primary crushers
- Use in mobile crushing and screening circuits
Technical parameters
- Product Model: S8D
- Drive mode: Diesel
- Engine power: 129 kW
- Feeding capacity: 450 t/h
- Input size max: 600 mm
- Feeding height: 3800 mm
- Capacity range: 200–450 t/h
- Overall weight: 35 t
Dimensions & transport
- Transportation dimension (L×W×H): 15570 × 3710 × 3700 mm
- Working dimension (L×W×H): 14600 × 14870 × 4680 mm
Notes
- Performance depends on material characteristics and selected configuration
- Optional wear parts and configurations available on request
