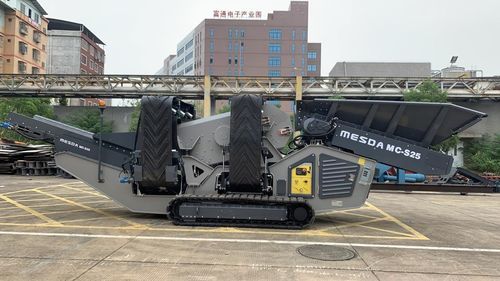

Impact crusher MC-S25

mobilehigh-capacity

Main features
Large output, high crushing efficiency, low energy consumption, low wear and high reliability.

Technical parameters
Impact crusher model: 150I. Hopper feed capacity: 600 mm. Max feed size: 600 mm. Rotor: Φ920 × 1200 mm, 700 rpm. Processing capacity: 80–200 t/h. Total working power: 202 kW. Total weight: 38 t. Transport dimensions: 16.2 × 3.6 × 3.7 m.

Technical specifications

• Model: MC-S25
• Brand: MESDA
• Impact crusher model: 150I
• Hopper feed capacity: 600 mm
• Hopper feed height: 3600 mm
• Hopper volume: 5 m³
• Vibrating feeder size: 3500 × 750 mm
• Vibrating feeder power: 3.0 kW × 2
• Vibrating feeder feed capacity: 400 t/h
• Impact crusher feed inlet: 940 × 700 mm
• Max feed size: 600 mm
• Rotor size: Φ920 × 1200 mm
• Rotor speed: 700 rpm
• Impact crusher weight: 15 t
• Impact crusher power: 160 kW
• Main conveyor discharge height: 3100 mm
• Main conveyor size: 9000 × B1000 mm
• Main conveyor power: 11 kW
• Return screen size: 2500 × 1500 mm; power: 3.7 kW × 2
• Transition belt size: 2000 × 650 mm; power: 3 kW
• Transition belt A/B size (‑B equipped): 2000 × B500 mm; power: 3 kW
• Side belt (‑B equipped) size: 6000 × B650 mm; power: 5.5 kW
• Return belt size: 8900 × B500 mm; power: 4 kW
• Fines belt size: 6000 × B1000 mm; power: 7.5 kW
• Tail belt size: 2800 × B500 mm; power: 3 kW
• Engine power (whole machine): 90 kW
• Total weight (whole machine): 38 t
• Processing capacity: 80–200 t/h
• Transport dimensions: 16.2 × 3.6 × 3.7 m
• Working dimensions (L × W × H): 16.2 × 4.1 × 4.2 m
• Total working power: 202 kW
