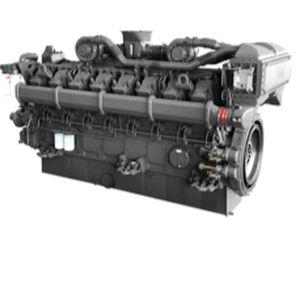

Diesel engine YC series
16-cylinderturbo-intercoolerfor power plants

Diesel engine - YC series - Guangxi Yuchai Machinery Group Co.,Ltd. - 16-cylinder / turbo-intercooler / for power plants
Diesel engine - YC series - Guangxi Yuchai Machinery Group Co.,Ltd. - 16-cylinder / turbo-intercooler / for power plants
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
16-cylinder
Technology
turbo-intercooler
Product applications
for power plants, for pumping applications, maritime industry
Cooling system
water cooling
Emissions level
Tier 2
Other characteristics
4-stroke
Power

1,470 W, 1,685 W, 2,206 W
(2 hp, 2.29 hp, 2,999.32 hp)

Rotational speed

1,200 rpm, 1,500 rpm
(7,539.8224 rad.min-1, 9,424.778 rad.min-1)

Displacement

105,560 cm³
(3,569.408 US fl oz)

Tank volume

370 l
(97.7 gal)

Weight

12,000 kg
(26,455.47 lb)

Length

3,756 mm
(147.9 in)

Width

1,818 mm
(71.6 in)

Height

2,414 mm
(95 in)

Description

Technical characteristics:
  • High/low temperature water cooling with four-valve cylinder heads for improved fuel economy and emissions.
  • Compact V16 layout: reduced footprint and weight for easier installation and service onboard.
  • Forged alloy-steel crankshaft and alloy-steel connecting rods for long-term durability.
  • Four-booster parallel connection technology for fast transient response and high loading capacity.
  • Independent patented coiler mechanism with intake manifolds arranged on both sides for simplified cylinder access (one cylinder/one cover maintenance).


Applications:
  • Designed for 1200–2400 kW power plants, marine propulsion and auxiliary drives, pump sets, passenger and transport vessels.


Models and Rated Power@Speed:
Model: YC16VC2400L-C20 — Rated Power: 1764 kW (2400 Ps) @ 1200 rpm
Model: YC12VC2000L-C23 — Rated Power: 1470 kW (2000 Ps) @ 1350 rpm
Model: YC16VC2700L-C20 — Rated Power: 1985 kW (2700 Ps) @ 1350 rpm
Model: YC16VC2700L-C23 — Rated Power: 1985 kW (2700 Ps) @ 1500 rpm
Model: YC16VC3000L-C20 — Rated Power: 2206 kW (3000 Ps) @ 1500 rpm


Selected specifications:
  • Configuration: V-16, 4-stroke diesel
  • Emissions: IMO / EPA Tier2
  • Displacement: 105.56 L
  • Compression ratio: 13.5 : 1
  • Rated engine speed: 1200–1500 rpm (variant dependent)
  • Bore × Stroke: 200.0 mm × 210.0 mm
  • Aspiration: Turbocharged and intercooled
  • Governor: Electronic control
  • Cooling system: Heat exchanger (water cooling)
  • Lube oil capacity (refill): 370 L; oil change interval: 250 hrs; oil grade: CF-40 or above
  • Net dry weight (approx): 12000 kg
  • Rotation: Counterclockwise (from flywheel end)
  • Flywheel housing: SAE No.00 — Flywheel: SAE No.21 — Flywheel teeth: 199
  • Maximum exhaust back pressure: 10 kPa
  • Firing order: L1—R1-L6—R6-L2—R2-L5—R5-L8—R8-L3-R3-L7-R7-L4-R4
  • Dimensions (L×W×H): 3756 × 1818 × 2414 mm
