Diesel engine YC6CL series
6-cylinderturbochargedin-line

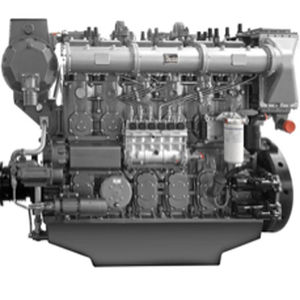

Diesel engine - YC6CL series - Guangxi Yuchai Machinery Group Co.,Ltd. - 6-cylinder / turbocharged / in-line
Diesel engine - YC6CL series - Guangxi Yuchai Machinery Group Co.,Ltd. - 6-cylinder / turbocharged / in-line
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
turbocharged, turbo-intercooler, in-line
Cooling system
water cooling
Emissions level
Tier 2
Other characteristics
4-stroke
Power

706 kW, 760 kW, 835 kW, 882 kW
(959.89 hp, 1,033.31 hp, 1,135.28 hp, 1,199.19 hp)

Rotational speed

1,000 rpm
(6,283.1853 rad.min-1)

Displacement

54,600 cm³
(1,846.246 US fl oz)

Tank volume

100 l
(26.4 gal)

Weight

5,380 kg
(11,860.87 lb)

Length

2,496 mm
(98.3 in)

Width

1,170 mm
(46.1 in)

Height

2,172 mm
(85.5 in)

Description

Product technical characteristics:
  • High-efficiency turbocharged and intercooled design with adequate power reserve for marine applications.
  • 4-valve per cylinder configuration for improved atomisation and combustion efficiency.
  • Modular construction with wet cylinder liners, one-piece cylinder head cover per cylinder and accessible side openings for ease of installation and maintenance.
  • Water-cooled exhaust system to reduce surface temperatures and improve onboard safety and comfort.


Market:
Suitable for 40–50 metre fishing vessels, 3,500–7,000 tonne transport ships, 600–900 kW marine generator sets and similar commercial marine applications.

Model — Rated Power@Speed:
Main engine:
  • YC6K420L-C20 — 760 kW (1035 Ps) @ 1000 rpm
  • YC6CL960L-C20 — 706 kW (960 Ps) @ 1000 rpm
  • YC6CL1200L-C20 — 882 kW (1200 Ps) @ 1000 rpm
  • YC6CL1135L-C20 — 835 kW (1135 Ps) @ 1000 rpm

Auxiliary engine:
  • YC6CL1035L-C20 — 760 kW (1035 Ps) @ 1000 rpm
  • YC6CL960L-C20 — 706 kW (960 Ps) @ 1000 rpm
  • YC6CL1135L-C22 — 835 kW (1135 Ps) @ 1000 rpm
  • YC6CL1200L-C22 — 882 kW (1200 Ps) @ 1000 rpm


Technical specifications:
  • Layout: L‑6, 4‑stroke diesel
  • Emissions: IMO / EPA Tier2
  • Displacement: 54.6 L (3,331.9 cu in)
  • Compression ratio: 14.5 : 1
  • Rated engine speed: 1000 rpm
  • Bore: 200.0 mm (7.87 in)
  • Stroke: 290.0 mm (11.42 in)
  • Firing order: 1-5-3-6-2-4
  • Injection timing: not specified
  • Aspiration: Turbocharged‑Intercooled
  • Governor: Mechanical or electronic control
  • Cooling system: Heat exchanger
  • Net dry weight (approx): 5,380 kg (11,860.9 lb)
  • Cooling system (engine only): 100 L (26.42 Gal)
  • Lube oil system (refill): 150–180 L (39.6–47.6 Gal)
  • Oil change interval: 250 hrs
  • Recommended oil grade: CF‑40 or above
  • Rotation: Counterclockwise (viewed from flywheel end)
  • Flywheel: SAE No.18, teeth: 182
  • Maximum exhaust back pressure: 10 kPa
  • Dimensions (L × W × H): 2496 × 1170 × 2172 mm
