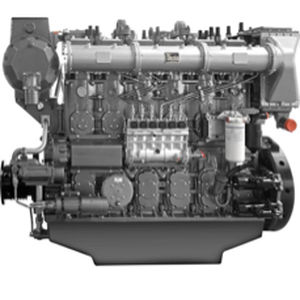

Diesel engine YC6CA
6-cylinderin-lineturbo-intercooler

Diesel engine - YC6CA - Guangxi Yuchai Machinery Group Co.,Ltd. - 6-cylinder / in-line / turbo-intercooler
Diesel engine - YC6CA - Guangxi Yuchai Machinery Group Co.,Ltd. - 6-cylinder / in-line / turbo-intercooler
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
turbo-intercooler, in-line
Product applications
power generation, for marine applications
Cooling system
water cooling
Emissions level
Tier 2
Other characteristics
4-stroke
Power

956 kW, 1,029 kW, 1,102 kW, 1,176 kW
(1,299.8 hp, 1,399.05 hp, 1,498.3 hp, 1,598.91 hp)

Rotational speed

1,000 rpm
(6,283.1853 rad.min-1)

Displacement

60,300 cm³
(2,038.986 US fl oz)

Tank volume

79.8 l
(21.1 gal)

Weight

5,500 kg
(12,125.42 lb)

Length

2,496 mm
(98.3 in)

Width

1,268 mm
(49.9 in)

Height

2,189 mm
(86.2 in)

Description

Key features
  • High-efficiency turbocharged and intercooled design providing ample power reserve.
  • 4-valve combustion system for improved atomisation and fuel economy.
  • Modular construction with wet cylinder liners, individual cylinder head and cover per cylinder, and open-side access for simplified installation and maintenance.
  • Water-cooled exhaust system for onboard safety and crew comfort.
  • Electronic control of fuel injection and governor for stable operation.


Typical applications (marine)
  • Suitable for 40–50 m fishing vessels, 3,500–7,000 ton transport ships and 600–900 kW marine generator sets.


Models and rated power
  • Main engine — YC6CA1400C: 1029 kW (1400 Ps) @ 1000 rpm
  • Main engine — YC6CA1500L-C20: 1102 kW (1400 Ps) @ 1000 rpm
  • Main engine — YC6CA1600L-C20: 1176 kW (1400 Ps) @ 1000 rpm
  • Auxiliary engine — YC6CA1300L-C20: 956 kW (1300 Ps) @ 1000 rpm
  • Auxiliary engine — YC6CA1400L-C22: 1029 kW (1400 Ps) @ 1000 rpm


Technical specifications
  • Type: L-6, 4-stroke cycle diesel
  • Emissions: IMO / EPA Tier 2
  • Displacement: 60.3 L
  • Compression ratio: 13.0:1
  • Rated speed: 1000 rpm
  • Bore × Stroke: 200 mm × 320 mm
  • Firing order: 1-5-3-6-2-4
  • Injection timing: Electronic control
  • Aspiration: Turbocharged and intercooled
  • Governor: Electronic control
  • Cooling system: Heat exchanger (engine cooling)
  • Maximum exhaust back pressure: 5 kPa
  • Flywheel: SAE No.18, Teeth: 182


Dimensions & weight
  • Overall dimension (L×W×H): 2496 × 1268 × 2189 mm
  • Net dry weight (approx.): 5,500 kg
  • Engine cooling system capacity (engine only): 79.84 L


Maintenance & fluids
  • Lube oil system refill: 130–160 L
  • Recommended oil grade: CF-40 or above
  • Oil change interval: 250 hrs
  • Rotation: Counterclockwise (from flywheel end)
