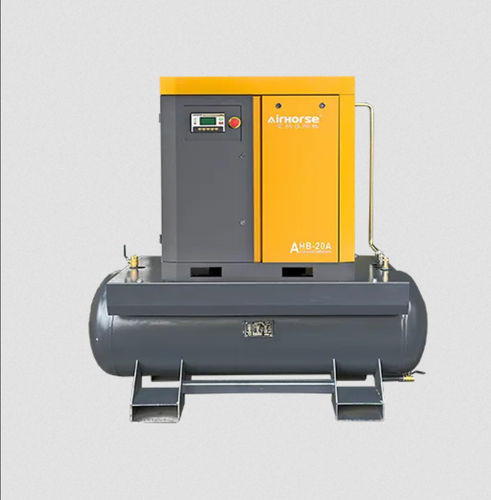

Belt-driven compressor AHB seriesscrewairelectric
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electric
- Portability
- stationary, portable
- Lubrication
- oil-lubricated
- Application domain
- industrial, for heavy-duty applications, for agricultural applications, for testing, laser cutting machine
- Applications
- precision, process, construction, service, for aluminum, for automobiles, for machine tools, for the gas industry, for OEM, for cleaners, laser, for automation, for bottles, for PET plastic bottle manufacturing, for bulk materials, for packaging, for tires, for surface texturing, for machines, for robots, plate , welding, for wood, tank, for metal panels, for vehicles, metal bonding, for tanks
- Voltage
- 400 V, 380 V, 220 V, 230 V
- Other characteristics
- tank-mounted, compact, low-noise, high-efficiency, high-performance, rugged, single-stage, with control panel, belt-driven, energy-saving, electric, air-cooled, medium-pressure
- Tank volume
Min.: 140 l
(37 gal)300 l, 500 l
(79.3 gal, 132.1 gal)Max.: 500 l
(132.1 gal)- Pressure
Min.: 0.7 Pa
(0 psi)800,000 Pa
Max.: 1.3 Pa
(0 psi)- Flow
Min.: 0.46 m³/min
(16.24 ft³/min)0.75 m³/min, 1.1 m³/min, 1.5 m³/min, 2.3 m³/min
(26.49 ft³/min, 38.85 ft³/min, 52.97 ft³/min, 81.22 ft³/min)Max.: 2.5 m³/min
(88.29 ft³/min)- Power
Min.: 5.5 kW
(7.48 hp)5.5 kW, 7.5 kW, 11 kW, 15 kW
(7.48 hp, 10.2 hp, 14.96 hp, 20.39 hp)Max.: 15 kW
(20.39 hp)- Length
Min.: 1,570 mm
(61.81 in)Max.: 1,620 mm
(63.78 in)- Width
Min.: 800 mm
(31.5 in)Max.: 860 mm
(33.86 in)- Height
Min.: 1,570 mm
(61.81 in)Max.: 1,787 mm
(70.35 in)- Weight
Min.: 370 kg
(815.7 lb)Max.: 490 kg
(1,080.3 lb)- Noise level
Min.: 62 dB
Max.: 68 dB
Description
The Tank Mounted Screw Compressor 5–20 HP, integrates the compressor and tank within a single cabinet, eliminating external tanks and piping. It is truly plug-and-play—place it, wire it, and start producing air, slashing installation time by 70 %. The compact vertical design saves a further 30 % of floor space, leaving your shop layout far more flexible.
● Plug-and-play simplicity--eliminates the leading causes of failure in air systems: incorrect sizing and installation
● Virtually no install costs--eliminates 80% of install time, material and costs
● Integral packaging saves valuable floor space for other uses.
● Lifetime power savings through highly efficient components.
● Increased productivity through better air quality-Eliminates water and corrosion resulting in extended tool and equipment life
● Plug-and-play simplicity--eliminates the leading causes of failure in air systems: incorrect sizing and installation
● Virtually no install costs--eliminates 80% of install time, material and costs
● Integral packaging saves valuable floor space for other uses.
● Lifetime power savings through highly efficient components.
● Increased productivity through better air quality-Eliminates water and corrosion resulting in extended tool and equipment life
