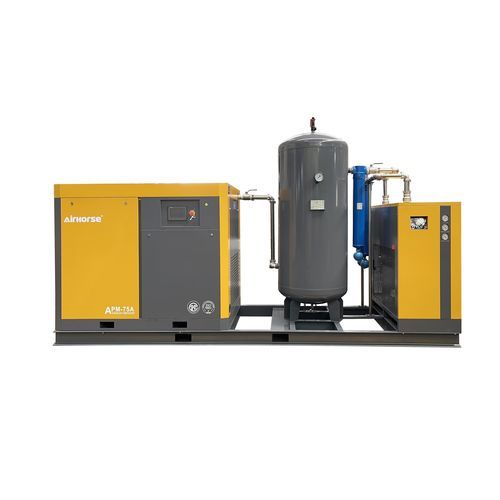

Screw compressor PSCairelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electric
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial, for heavy-duty applications, for testing
- Applications
- process, construction, service, precision, for automobiles, for OEM, parts, for PET plastic bottle manufacturing, plate , for automation, for surface texturing, tank, tool, laser, for packaging, welding, for electric tools, for vehicles, for wood, for metal panels, sheet, for machine tools, for aluminum, for bottles, for bulk materials, metal bonding, for robots, PLC, for tanks, for machines, for tires
- Voltage
- 400 V, 380 V, 220 V, 230 V
- Other characteristics
- with tank, compact, inverter, with booster, air-cooled, skid-mounted, low-noise, variable-speed, high-efficiency, direct-drive, high-pressure, with dryer, with frequency converter, with integrated filtration, high-performance, heavy-duty, single-stage, energy-saving, electric
- Tank volume
Min.: 1,000 l
(264.2 gal)Max.: 5,000 l
(1,320.9 gal)- Pressure
Min.: 8 bar
(116.03 psi)Max.: 40 bar
(580.15 psi)- Flow
Min.: 2.8 m³/min
(98.88 ft³/min)Max.: 10 m³/min
(353.15 ft³/min)- Power
Min.: 22 kW
(29.91 hp)Max.: 75 kW
(101.97 hp)- Length
Min.: 2,000 mm
(78.74 in)Max.: 3,100 mm
(122.05 in)- Width
Min.: 1,350 mm
(53.15 in)Max.: 2,000 mm
(78.74 in)- Height
Min.: 1,500 mm
(59.06 in)Max.: 2,280 mm
(89.76 in)- Weight
Min.: 860 kg
(1,896 lb)Max.: 1,960 kg
(4,321.1 lb)- Noise level
Min.: 65 dB
Max.: 78 dB
Description
- Compact Integrated Design For Maximum Space Efficiency: Full Range Coverage From 30hp To 100hp (22kW To 75kW) Air Flow From 0.7m³/min To 44.5m³/min, 25 cfm To 1570 cfm At 7bar To 13baFull Range Coverage From 10hp To 350hp (7.5kW To 250kW) Air Flow From 2.8m³/min To 10.0m³/min, 99 cfm To 477 cfm At 8 bar To 40bar. This system combines a high performance compressor, air tank, and refrigerated dryer on a single heavy duty skid, reducing the workshop footprint by over sixty percent compared to traditional split systems. Featuring advanced permanent magnet frequency conversion, it ensures a smooth start and precise air flow adjustment to match your industrial demand while saving significant energy through optimized power consumption.
- Versatile Pressure Boosting And Air Quality Control: Capable of boosting standard air sources up to forty bar, this unit handles processing flows up to forty cubic meters per minute for large scale operations. The built in air cooling system eliminates the need for external water towers, while the integrated high efficiency dryer maintains a low pressure dew point between five and seven degrees to guarantee high quality moisture free air for sensitive downstream machinery.
- Robust Industrial Build With Professional Specifications: Constructed with premium heavy duty steel and professional grade components, these units weigh between eight hundred sixty and nineteen hundred sixty kilograms. The system is designed for extreme durability in harsh environments, featuring standardized outlet diameters and compact dimensions that allow for indoor operation without specialized foundations, significantly lowering installation complexity and total infrastructure investment.
- Ideal Solution For Specialized Industrial Applications: Perfectly suited for PET bottle blowing, pressure testing, shipbuilding, and chemical processing where high pressure air is mandatory. The skid mounted design provides a true plug and play experience, allowing for convenient demolition and easy relocation as your production line evolves. Its quiet operation and vibration dampened base ensure a better working environment for facility operators while eliminating complex on site piping work.
- Simplified Operation And Technical Documentation Support: Each system features an intuitive PLC touch screen for easy monitoring of pressure and temperature levels. We provide comprehensive digital operation manuals and technical data sheets to assist your engineering team during initial setup and routine checks. Users can access technical guidance through an extensive global dealer network spanning over forty countries, ensuring you have the necessary resources to maintain peak performance through every stage of operation.
