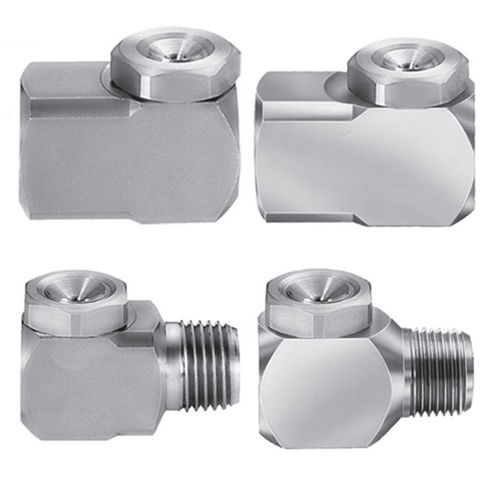

Spray nozzle A-W, AX-W, B-W, BX-W
cleaningcoolingwashing

spray nozzle
spray nozzle
Add to favorites
Compare this product


Characteristics

Function
spray, cleaning, cooling, washing
Fluid
for liquids
Stream
hollow-cone
Material
stainless steel
Applications
chemical
Other characteristics
threaded
Orifice diameter

Min.: 0.79 mm
(0.03 in)

Max.: 11.1 mm
(0.44 in)

Description

Hollow cone spray pattern with a ring-shaped impact area. Spray angles of 85° to 144° at 20 psi (1.5 bar). Large, unobstructed flow passages minimize clogging. Uniform distribution over a wide range of flow rates and pressures. Small- to medium-sized drops. Good atomization of liquids at lower pressures, quick heat transfer, effective airborne droplet impingement. Removable caps for easy inspection and cleaning on many models. Slope-bottom design on many models reduces the drilling effect of the fluid vortex in the fluid chamber. Application: 1 Brine spraying 2 Chemical processing 3 Dust control 4 Evaporative cooling in spray ponds and cooling towers 5 Gas scrubbing, washing, cooling 6 Metal treating 7 Product degreasing 8 Water aerating 9 Water cooling
