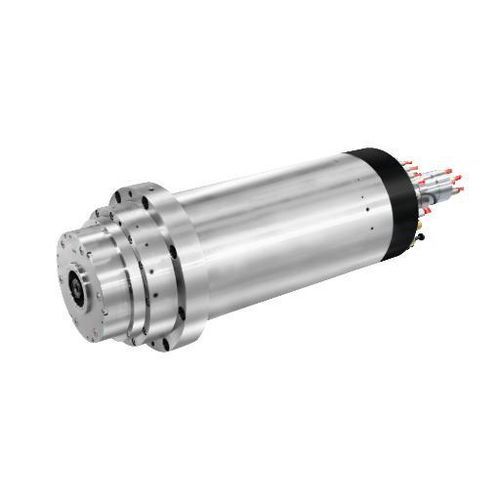

Cooling spindle DGZYX-15024/25

motorizedHSK A-63air-cooled

Overview
The DGZYX-15024/25 is a shaft-core-cooled spindle for precision milling, combining a Φ150 mm body with shaft-core cooling, synchronous motor drive, HSK-A63 tool interface, 24,000 rpm maximum and 25 kW continuous (S1) output. It is designed to control thermal behaviour during extended high-speed cycles rather than relying on speed alone.

Key parameters (product summary)
Model: DGZYX-15024/25
Diameter: Φ150 mm
Maximum speed: 24,000 rpm
Power (S1): 25 kW
Torque (S1): 35 Nm

Technical data
Model: DGZYX-15024/25
Rated power S1: 25 kW
Rated torque S1: 35 N·m
Max. speed: 24,000 rpm
Motor type: Synchronous
Tool interface: HSK-A63
Lubrication method: Oil-air
Cooling: Shaft-core cooling

Additional information
Some metadata records list an alternative nominal torque of 41 Nm; confirm the required torque value with the supplier before ordering.

Features / Technical specifications

• Model: DGZYX-15024/25
• Body diameter: Φ150 mm
• Maximum speed: 24,000 rpm
• Rated power (S1): 25 kW
• Rated torque (S1): 35 Nm
• Alternative nominal torque: 41 Nm (in some metadata)
• Motor type: Synchronous
• Tool interface: HSK-A63
• Lubrication: Oil-air
• Cooling: Shaft-core cooling
• Application: Controlled thermal behaviour for precision milling in extended high-speed cycles
