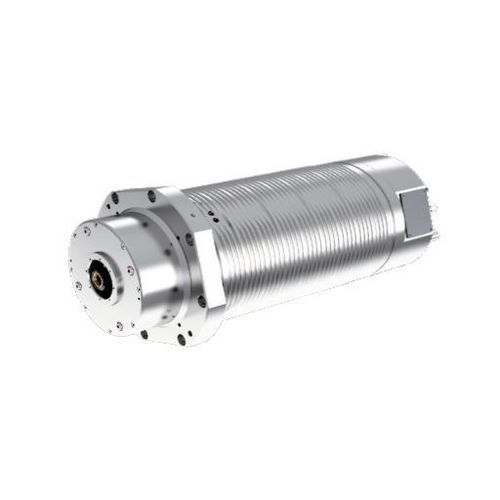

Finishing spindle DGZYX-18018/45--HSK

millinghigh-powermotorized

Product overview
The DGZYX-18018/45 is a high-power HSK-A63 spindle built on a Φ180 mm housing, delivering 45 kW continuous power and up to 18,000 rpm. It is designed to provide the torque reserve required for heavier cuts while enabling productive high-speed milling in industrial machining centers.

Summary specifications
Diameter: Φ180 mm
Maximum speed: 18,000 rpm
Torque (S1): 100 N·m
Torque (S6-40%): 150 N·m
Power (S1): 45 kW
Power (S6-40%): 67.5 kW

Technical data
Model: DGZYX-18018/45--HSK
Diameter: Φ180 mm
Tool interface: HSK-A63
Bearings lubrication: Grease
Motor system: Single-winding synchronous motor
Highest speed: 18,000 rpm
Voltage: 380 V
Rated power (S1-100%): 45 kW
Rated torque (S1-100%): 100 N·m
Rated power (S6-40%): 67.5 kW
Rated torque (S6-40%): 150 N·m
Spindle coolant: Water (recommended)
Tool outer coolant (Ring spray): Water / Oil / Oil mist / Air
Tool inner coolant (Center cooling): Water / Oil / Oil mist
Tool change: Hydraulic
Motor temperature sensor: KTY84-130, PTC
Encoder: Sin/cos, 1VPP
Tool clamping monitor sensor: 24 V, PNP, Normally Open
Clamping force range: 14,000–24,000 N

Characteristics / technical specifications

• Model: DGZYX-18018/45--HSK
• Diameter: Φ180 mm
• Tool interface: HSK-A63
• Max speed: 18,000 rpm
• Rated power (S1-100%): 45 kW
• Rated torque (S1-100%): 100 N·m
• Rated power (S6-40%): 67.5 kW
• Rated torque (S6-40%): 150 N·m
• Motor system: Single-winding synchronous motor
• Voltage: 380 V
• Bearings lubrication: Grease
• Spindle coolant: Water (recommended)
• Tool outer coolant options: Water / Oil / Oil mist / Air
• Tool inner coolant options: Water / Oil / Oil mist
• Tool change method: Hydraulic
• Motor temperature sensors: KTY84-130, PTC
• Encoder output: Sin/cos, 1VPP
• Tool clamping monitor: 24 V, PNP, Normally Open
• Clamping force range: 14,000–24,000 N
