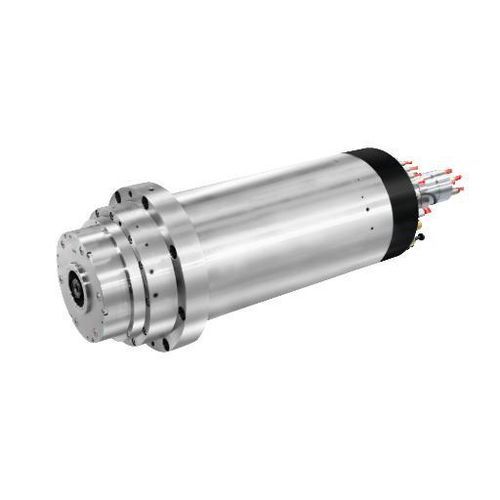

Machining spindle DGZYX-19024/37B

millingcoolingmotorized

Overview
The DGZYX-19024/37B integrates shaft-core cooling into a larger Φ190 mm high-speed spindle to provide active thermal control. It is engineered for prolonged high-speed duty (24,000 rpm) to limit spindle thermal growth and maintain machining consistency for industrial production environments.

Key specifications
Diameter: Φ190 mm
Maximum speed: 24,000 rpm
Torque (S1): 72 N·m
Power (S1): 37 kW

Technical data
Model (table): DGZYX-15024/25
Rated power S1: 37 kW
Rated torque S1: 72 N·m
Max. speed: 24,000 rpm
Motor type: Synchronous
Tool interface: HSK-A63
Lubrication method: Oil-air

Features

• Shaft-core cooling for active thermal regulation during extended high-speed operation
• Designed to minimize axial and radial thermal growth at 24,000 rpm
• Large Φ190 mm stator/rotor diameter for increased stiffness and stability
• Synchronous motor delivering consistent torque across speed range
• HSK-A63 tool interface for high-precision toolholding
• Oil-air lubrication suited for high-speed spindle bearings

Application

• High-speed milling and finishing operations
• Mold & die machining requiring thermal stability
• Aerospace and automotive precision component machining
• Continuous production lines with long duty cycles
• Any high-duty-cycle process where thermal growth control is critical

Technical specifications

• Model name: DGZYX-19024/37B (page reference)
• Table model: DGZYX-15024/25
• Diameter: Φ190 mm
• Maximum speed: 24,000 rpm
• Rated power (S1): 37 kW
• Rated torque (S1): 72 N·m
• Motor type: Synchronous
• Tool interface: HSK-A63
• Lubrication: Oil-air
• Cooling method: Shaft-core cooling
