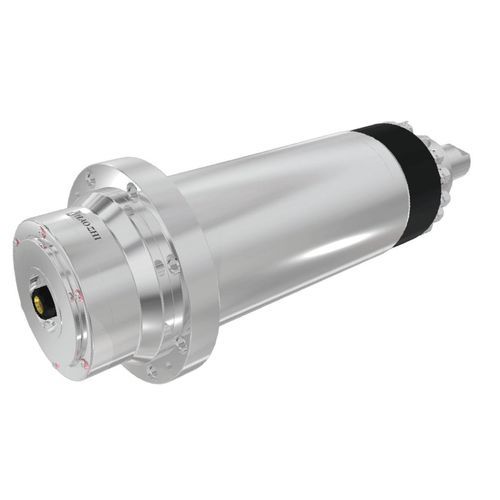

Milling spindle DGZYX-15020

motorizedHSK A-63

Description
The DGZYX-15020 prioritizes cutting torque over maximum spindle speed. Its 22 kW continuous power (S1), 42 Nm rated torque and HSK-A63 or BB140 tool interfaces support larger cutters, deeper cuts and coolant-through-spindle machining.

Summary table
Diameter: Φ150 mm
Maximum speed: 20,000 rpm (grease)
Torque (S1): 42 Nm
Torque (S6-40%): 63 Nm
Power (S1): 22 kW
Power (S6-40%): 33 kW

Technical data
Spindle model: DGZYX-15020/22
Diameter: Φ150 mm
Length: 590.5 mm
Tool interface: HSK-A63 / BB140
Max. speed: 20,000 rpm (grease)
Motor technology: Synchronous motor
Power S1-100%: 22 kW
Power S6-40% (2 min): 33 kW
Torque S1-100%: 42 Nm
Torque S6-40% (2 min): 63 Nm
Spindle cooling: Water
Coolant through shaft: Water / Oil mist
Encoder: Sin/cos, 1 Vpp
Thermistor in coil: KTY84-130
Thermistor for bearings: Not supported
Vibration sensor: Not supported
Spindle growth system: Not supported
Turning: Not supported
Weight: 55 kg

Dimensions
Technical drawing available for overall dimensions and mounting details (length listed above).

Features / Technical specifications

• Model: DGZYX-15020/22
• Diameter: Φ150 mm
• Length: 590.5 mm
• Tool interface: HSK-A63 / BB140
• Max speed: 20,000 rpm (grease)
• Motor: Synchronous motor
• Power S1: 22 kW
• Power S6: 33 kW (short-time)
• Torque S1: 42 Nm
• Torque S6: 63 Nm (short-time)
• Spindle cooling: Water
• Coolant through shaft: Water / Oil mist
• Encoder: Sin/cos, 1 Vpp
• Thermistor in coil: KTY84-130
• Weight: 55 kg
