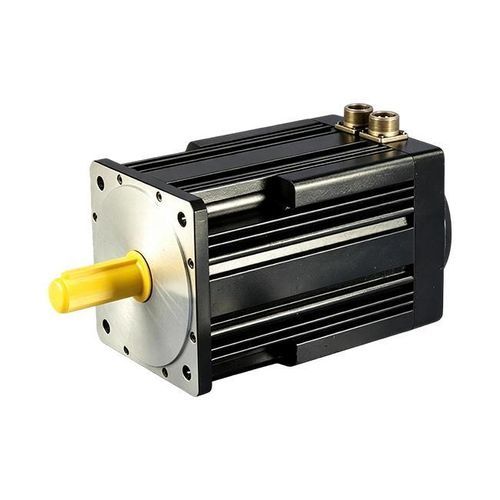

AC servomotor BL 190–192

multipoleservo-driven

Overview BL 190–192 selects the largest named large-frame group in this series. Designed for larger industrial motion axes, these AC servo motors provide high dynamic response, improved thermal performance from stator-located windings, flexible cable routing and very low maintenance.

Key features

• High dynamic response suitable for heavy or long-stroke axes.
• Full-speed operation without limitations from brush-sparking effects.
• Stator-located motor windings for enhanced thermal and dynamic characteristics.
• Very low maintenance requirements.
• Connection box with four selectable positions (standard construction) for flexible cable orientation.

Applications Intended for larger industrial motion axes where high dynamic performance, strong thermal capacity and low maintenance are required.

Technical characteristics / specifications

• Model family: BL 190–192.
• Type: large-frame AC servo motor (brushless).
• Frame size: largest named frame group in this product set.
• Winding location: stator (enhanced thermal and dynamic performance).
• Connection box positions: 4 (standard).
• Performance: high dynamic response; full-speed operation without brush-sparking limitation.
• Maintenance: designed for very low maintenance.
• Intended use: larger industrial motion axes.
