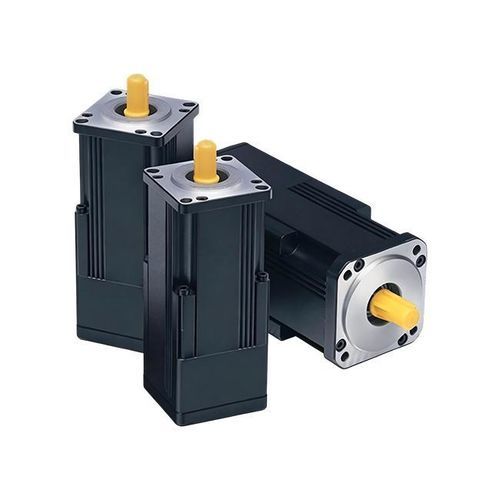

DC servomotor CML

compactsmall-sizeservo-driven

Product overview
CML integrates radial-flux DC servo technology into a compact square-frame housing. The mechanical format is intended as an alternative to axial-air-gap (axial-gap) motors when machine mounting space and housing geometry constrain selection.

Features

• Compact square-frame housing
• Radial magnetic flux topology
• High power density and dynamic response
• Designed for space-constrained installations

Applications
Suitable for servo axes, actuators and machine subsystems requiring a compact motor envelope with high dynamic capability where mounting space and housing geometry are limiting factors.

Technical specifications

• Motor type: Radial-flux DC servo motor (series CML)
• Housing: Compact square-frame format
• Mechanical format: Alternative to axial-air-gap motors for constrained mountings
• Key attributes: compact dimensions, radial magnetic flux, high power density
• Typical uses: machine axes, robotics joints, compact actuator assemblies
