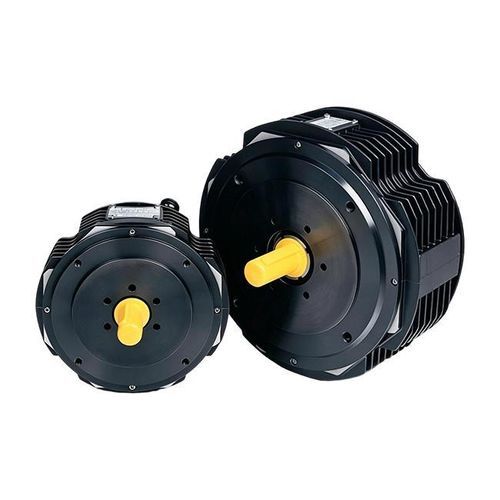

DC servomotor MSS

ironlesshigh-efficiencyservo-driven

Product overview
MAVILOR MSS Series axial air-gap ironless-rotor DC servomotors are engineered for high-response servo drives. The axial air-gap dish armature produces a high and smooth torque-to-inertia ratio and non-cogging torque for precise low-speed velocity control. The ironless rotor design provides extremely long brush life and high efficiency. MSS motors deliver approximately a 20% increase in power-to-weight and power-to-volume ratios and a 20% increase in power rate and acceleration capability versus previous designs. Optional integrated tachometers and fail-safe holding brakes are available, and many MSS versions are roughly half the length of equivalently rated conventional motors.

Features

• Ratings up to 6,000 RPM.
• Compact overall length (often up to half of conventional motors).
• Zero cogging for smooth low-speed control.
• Acceleration torques up to 10× rated.

Technical specifications

• Series: MAVILOR MSS.
• Motor type: Ironless-rotor DC servo motor (axial air-gap / dish armature).
• Torque characteristics: High and smooth torque-to-inertia ratio; non-cogging torque for precise low-speed control.
• Speed rating: Up to 6,000 RPM.
• Acceleration: Acceleration torques up to 10× rated.
• Performance gain: ≈20% increase in power-to-weight and power-to-volume ratios; ≈20% increase in power rate and acceleration capability versus previous designs.
• Form factor: Often up to half the length of equivalently rated conventional motors.
• Durability: Extremely long brush life due to ironless rotor design.
• Efficiency: High efficiency.
• Options: Integrated tachometers and fail-safe holding brakes available.
• Typical applications: High-response servo drives and demanding low-speed/high-precision motion control.
