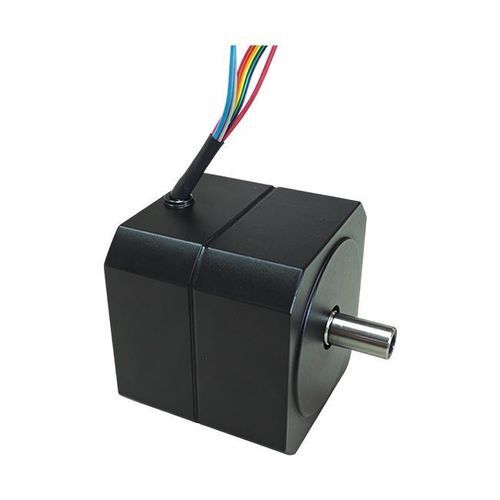

AC servomotor XtraforsBC

compactlightweightservo-driven

Overview
Compact AC servo motor series XtraforsBC provides integrated rotor-position feedback via an internal Hall sensor. Available in 57–110 mm frames with rated torque from 0.35 to 2.25 Nm, the series is engineered for installations with limited space and low inertia requirements.

Key points

• Rated torque: 0.35–2.25 Nm
• Frame sizes: 57–110 mm
• Feedback: integrated Hall rotor-position sensor
• Ultra-compact, lightweight construction
• Motor type: AC servo

Applications
Designed for small dynamic axes in motion-control systems where integrated position feedback and minimal package size are required (e.g., compact robots, pick-and-place units, precision indexing axes).

Technical specifications

• Series: XtraforsBC
• Rated torque range: 0.35–2.25 Nm
• Available frame sizes: 57, 72, 110 mm (57–110 mm range)
• Feedback: integrated Hall rotor-position sensor
• Design focus: ultra-compact body, low inertia, lightweight construction
• Motor type: AC servo motor
