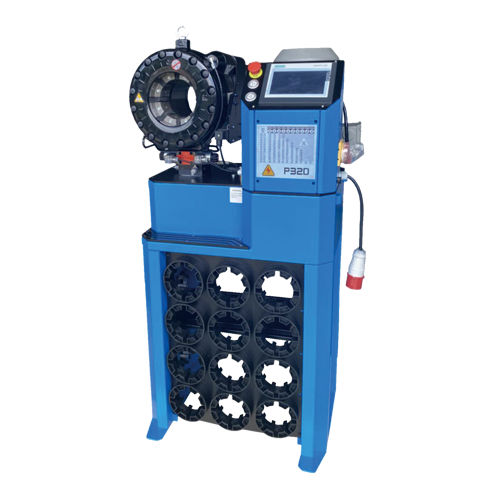

Hose crimping machine YB-P32Dautomaticfoot-operated
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses
- Operational mode
- automatic
- Drive type
- foot-operated
- Crimping force
2,000 kN
- Crimping capacity
Min.: 10 mm
(0.4 in)Max.: 87 mm
(3.4 in)- Power
Min.: 3.7 kW
(5.03 hp)Max.: 4 kW
(5.44 hp)- Voltage
Min.: 200 V
Max.: 440 V
- Weight
305 kg
(672.41 lb)
Description
P32D hose-crimping machine has been designed to crimp up to 2” diameter4-spiral hoses. And for workshop use. It is fast and easy to use. Control by CNC system.
Cycle time 10 mm (s) Tri/Mono - 3.3 / 5.5
Hose size ID (inches) - 2 (4SH)
Dies set series - P32
Max. opening (mm) - +33
Max.opening without dies (mm) - 132
Master die D / L (mm) - 99/80
Master die D / L (inches) - 3.90/3.15
Motor Tri/Mono (kW/HP) - 3.7/5 4/5.3
Oil tank volume (L) - 42
Crimping /hour - 700/850
Motor Voltage (V)：Tri - 200/220/380/440
Motor Voltage (V)：Mono - 220/230/240
QuickChange-tool
Die racks
Numerical control
