Hose crimping machine YB-P165
hydraulic hoseautomatichydraulic

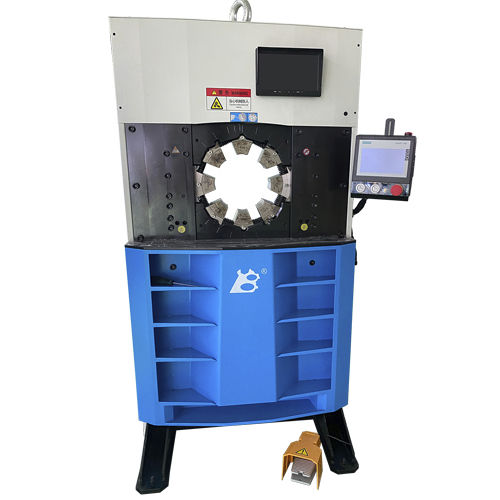

Hose crimping machine - YB-P165 - Guangzhou YuBen Hydraulic Technology Co., Ltd. - hydraulic hose / automatic / hydraulic
Hose crimping machine - YB-P165 - Guangzhou YuBen Hydraulic Technology Co., Ltd. - hydraulic hose / automatic / hydraulic
Add to favorites
Compare this product

Characteristics

Product handled
for hoses, hydraulic hose
Operational mode
automatic
Drive type
hydraulic, foot-operated
Other characteristics
high-capacity
Crimping force

5,000 kN

Crimping capacity

Max.: 202 mm
(8 in)

Min.: 6 mm
(0.2 in)

Power

6.5 kW
(8.84 hp)

Voltage

200 V, 220 V, 380 V, 400 V, 440 V

Description

Yuben P165hose-crimping machine has beendesigned to crimp up to 6”4-spiralhoses.Maxopening 345mm.P165 die system with adaptor diessuitable forlager, medium and even small sizefittings TECHNICAL DATA Max crimping dia (mm) : 6-202 Max crimping dia (inches) : 0.24-7.95 Max. crimping force (kN) : 5000 Max. crimping force (tonnage) : 500 cycle time 10 mm (s) : 3.6 Hose size ID (inches) : 6" Dies set series : P32/P160 Max. opening (mm) : +125 Max.opening without dies (mm) : 345 Master die D /L (mm) : 220/116 Master die D /L(inches) : 8.66/4.57 Motor Power(kW/HP) : 6.5/8.8 oil tank volume (L ) : 135 Crimping /hour Motor Voltage (V):Tri: 200/220/380/400/440 DIMENSIONS (L x W x H) Machine (mm)1060*860*1825 Machine (inch) 41.7*33.9*71.9 Package (mm) 1110*995*1915 Package (inch) 43.7*39.2*75.4 Station (mm) 782*753*1060 Station (inch) 30.8*29.3*41 Package (mm) 869*828*1340 Package (inch) 34.2*32.59*52.8 WEIGHT ( KG ) Machine N.W. 2430 Machine G.W. 2480 StationN. W. 190 Station G.W. 220

VIDEO

Catalogs

YB-P165
YB-P165
1 Pages
