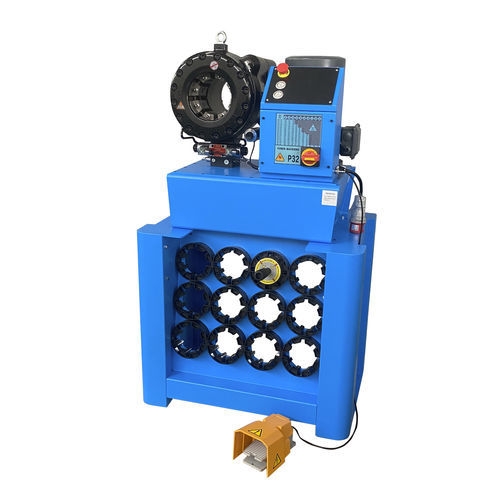

Hose crimping machine YB-P32semi-automaticfoot-operatedhigh-capacity
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses
- Operational mode
- semi-automatic
- Drive type
- foot-operated
- Other characteristics
- high-capacity
- Crimping force
2,000 kN
- Crimping capacity
Min.: 10 mm
(0.4 in)Max.: 87 mm
(3.4 in)- Power
Min.: 1.6 kW
(2.18 hp)Max.: 2.25 kW
(3.06 hp)- Voltage
Min.: 12 V
Max.: 24 V
- Weight
286 kg
(630.522 lb)
Description
Yuben P32 hose-crimping machine has been designed to crimp up to 2” diameter4-spiral hoses. And for workshop use. It is fast and easy to use.
Cycle time 10 mm (s) - 7.5
Hose size ID (inches) - 2" (4SH) / 1 1/2"(6SH)
Dies set series - P32
Max. opening (mm) - +33
Max.opening without dies (mm) - 132
Master die D / L (mm) - 99/80
Master die D / L (inches) - 3.90/3.15
Motor (kW) 12V/24V - 1.6/2.25
Motor (HP) 12V/24V - 2.1/3.05
Oil tank volume (L) - 4
Crimping /hour - 100
Quick Change-tool
Die wall racks
