- Guangzhou YuBen Hydraulic Technology Co., Ltd.

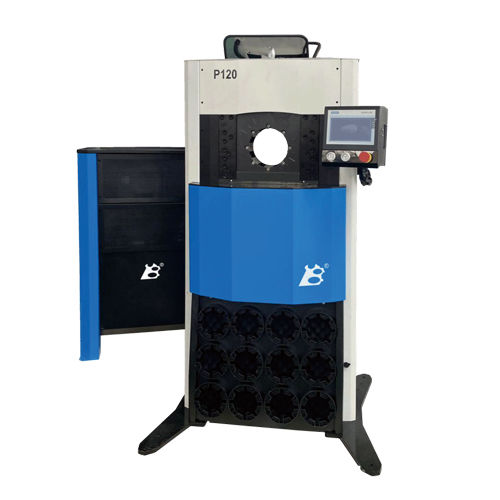

Hose crimping machine YB-P120automaticfoot-operatedhigh-capacity
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses
- Operational mode
- automatic
- Drive type
- foot-operated
- Other characteristics
- compact, high-capacity
- Crimping force
2,800 kN
- Crimping capacity
Max.: 87 mm
(3.4 in)Min.: 6 mm
(0.2 in)- Power
5.5 kW
(7.48 hp)- Voltage
200 V, 220 V, 380 V, 400 V, 440 V
- Weight
930 kg
(2,050.3 lb)
Description
Suitable for batch production, high efficiency, high stability. Save operator's strength by compact ergonomic design make .
Cycle time 10 mm (s) - 1.5
Hose size ID (inches) - 6 Spirals 2" R13 (DN51)
Dies set series - P32
Max. opening (mm) - +65
Max.opening without dies (mm) - 164
Master die D / L (mm) - 99/97
Master die D / L (inches) - 3.90/3.82
Motor Power (kW/HP) - 5.5/7.5
Oil tank volume (L) - 120
Crimping /hour - 2500
Motor Voltage (V)： Tri - 200/220/380/400/440
※QuickChange-tool
※Mirror
※Electric backstop device
※Die racks
※CNC
