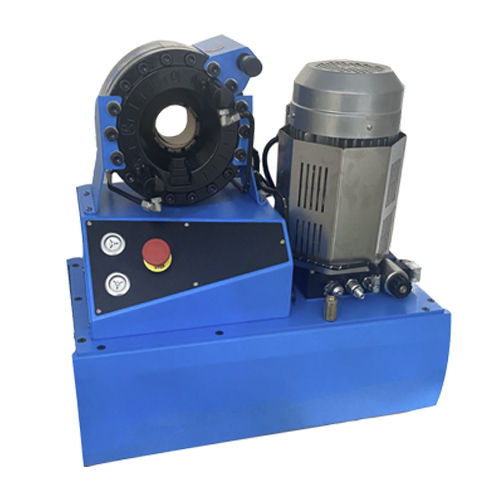

Hose crimping machine YB-P18X
semi-automatichydrauliccompact

hose crimping machine
hose crimping machine
Add to favorites
Compare this product


Characteristics

Product handled
for hoses
Operational mode
semi-automatic
Drive type
hydraulic
Other characteristics
compact
Crimping force

800 kN

Crimping capacity

Min.: 10 mm
(0.4 in)

Max.: 54 mm
(2.1 in)

Power

2.2 kW
(2.99 hp)

Voltage

200 V, 220 V, 380 V

Description

P18X hose-crimping machine has been designed to crimp up to 3/4”diameter 4-spiral hoses. It is small hydraulic crimping machine for repair workshops and field use. Easy to use, light and compact in size. Cycle time 10 mm (s) - ____ Hose size ID (inches) - 3/4(4sp) / 1 (2sp) Dies set series - P18 Max. opening (mm) - +20 Max.opening without dies (mm) - 68 Master die D / L (mm) - 48/64 Master die D / L (inches) - 1.89/2.52 Oil tank volume (L) - 26 Crimping /hour - ____

VIDEO

Catalogs

YB-P18X
YB-P18X
1 Pages
