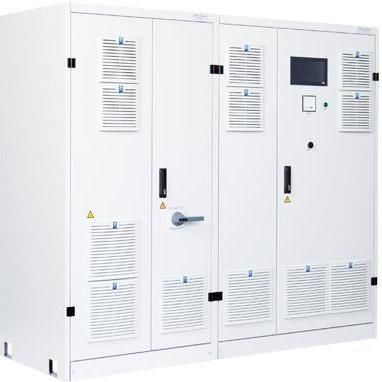

Cabinet power supply I-TS-3840

DCthree-phaseIP54

Overview
The I-TS-3840 is a single-channel bidirectional DC source/sink designed for high-dynamic tests in automotive, hydrogen and laboratory environments. The unit is based on standardized configurations with selectable options so that no additional engineering effort is required after order placement.

Product concept
High-dynamic DC power system with continuous, seamless transition between source and sink operation. Suitable for battery testing, battery emulation and load applications where fast current response and precise control are required.

Standard features

• Single-channel I-TS-3840 configuration with extensive factory equipment
• Main switch (load-break switch with fuses on AC input; lockable in off position)
• Safety control to Performance Level d (PLd) per ISO 13849-1 / EN 60204-1
• Touch display and analog voltmeter on the cabinet door
• Switchable tester / simulator functions
• DC contactors with increased short-time current capacity
• Dedicated terminals for DC voltage measurement (0.1% accuracy with sense lines)
• External terminals for emergency stop and stop
• Modbus TCP/IP, CAN bus (100 Hz, dbc file), VNC via Ethernet

Typical applications

• Battery charge and discharge testing
• Battery simulation / emulation
• Load for fuel cells
• Test power supply for contactors, fuses and circuit breakers
• DC motor and drivetrain testing
• Charging station testing

Technical data (overview)

• Model: I-TS-3840 (single-channel)
• AC mains: 380V 3/PE ±10% or 400V 3/PE ±10%; 50/60 Hz ±5%
• Measurement: 16 bit ADC for voltage and current
• Control accuracy: 0.1% FS (voltage / current)
• Residual ripple: ≤ 0.1% rms FS (voltage / current)
• Dynamic voltage tolerance: battery tester 3% FS / battery emulator 1% FS (0–100% INom in 3 ms)
• Short-circuit rating: short-circuit proof up to 3 kA / 8 kA / 15 kA depending on system current rating
• Cooling: air cooling (IP20) or water cooling (IP54)
• Interfaces: Modbus TCP/IP, CAN bus (100 Hz, dbc file), VNC via Ethernet
• Standards: EN ISO 13849-1/2, EN 60204-1, EN 61000 series, EN 61800-3

Available types (examples)

• I-TS-3840-1500-260-800: 10–1500 V; 260 kW; ±800 A; current rise time < 1.4 ms; internal resistance -19 mΩ – 1875 mΩ
• I-TS-3840-1500-400-800: 10–1500 V; 400 kW; ±800 A; current rise time < 1.4 ms; internal resistance -19 mΩ – 1875 mΩ
• I-TS-3840-1200-320-1200: 10–1200 V; 320 kW; ±1200 A; current rise time < 1.0 ms; internal resistance -10 mΩ – 1000 mΩ
• I-TS-3840-1200-650-1200: 10–1200 V; 650 kW; ±1200 A; current rise time < 1.0 ms; internal resistance -10 mΩ – 1000 mΩ

Environmental, cooling and standards
Storage, transport and operation classes per EN 60721 series. Typical operation temperature +5 to +40 °C (other ranges for transport/storage as specified). Cooling options: air cooling (IP20) or water cooling (IP54). Safety and EMC standards as listed above.

Notes
Subject to technical changes.

Technical specifications

• Model: I-TS-3840 (single-channel DC source/sink)
• AC supply: 380V / 400V 3/PE ±10%; 50/60 Hz ±5%
• ADC resolution: 16 bit (voltage / current)
• Control accuracy: 0.1% FS
• Residual ripple: ≤ 0.1% rms FS
• Interfaces: Modbus TCP/IP, CAN bus, VNC
• Typical uses: battery testing/emulation, fuel cell loading, DC motor/drivetrain testing, charging station testing
