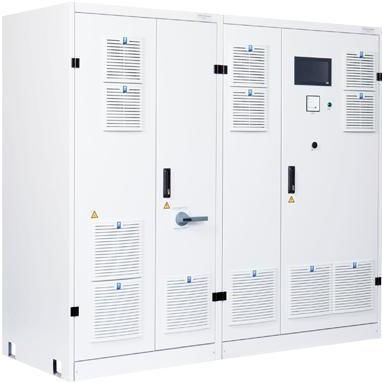

Cabinet power supply I-TS-3870

DCsingle-outputIP54

Overview
The I-TS-3870 is a single-channel, high-dynamic bidirectional DC source/sink system for testing and simulation of batteries, fuel cells and e-powertrains. Single output up to 1500 V and up to 1200 A; maximum power in single operation up to 650 kW and up to 2.6 MW in parallel operation. Continuous seamless transition between source and sink modes makes it suitable for automotive, hydrogen, laboratory and industrial power-electronics testing.

Standard features

• General information: 3-phase AC input 380/400/440/480/690 V ±10 %, 50/60 Hz; sense connections for voltage measurement/regulation; protection class IP20 (higher IP levels as option); air cooling standard; vibration-reducing design and fan control for low noise.
• DC voltage and current measurement with 16-bit ADC and 0.1 % full-scale control accuracy.
• Available configurations: battery tester and battery emulator (hardware/software variants for different performance and stability requirements).

Safety features

• Lockable main switch serving as load-break switch.
• Safety control up to Performance Level d according to EN 60204-1 / ISO 13849-1 (option to upgrade to PL e).
• Stop switch integrated in cabinet door and voltmeter/indicator in door.
• Redundant DC output contactors and terminals for external emergency stop.
• DC output galvanically isolated from AC mains (insulation available and insulation monitoring option).

Interfaces

• 10 inch touchscreen with touch operation.
• Modbus/TCP, CAN and VNC standard.
• Optional high-speed and industrial interfaces: CAN 1 kHz, SCPI, EtherCAT, ProfiBus, ProfiNet, analog I/O, LabVIEW and Matlab/Simulink connectivity.

Options (excerpt)

• Performance Level upgrade to PL e.
• Battery emulation version with increased output capacity and improved voltage stability.
• Switchable protective diode at DC output for sink-only protection.
• Insulation monitoring for galvanic isolation of DC output.
• Parallel operation (master/slave) to scale power up to 2.6 MW.
• Enhanced DC contactors, custom cabinet options (locks, wheels, sockets, coatings), door contact switches.
• NA-protection with network analysis and water cooling option to achieve IP54.

Typical applications

• Battery testing: charge/discharge cycles and endurance tests.
• Battery simulation and emulation for BMS and charger development.
• Fuel cell load simulation and testing.
• Test power supply for contactors, fuses and circuit breakers.
• DC motor and drivetrain testing.
• Charging station and rail vehicle maintenance power supply.

Technical data (excerpt)
AC mains voltage / frequency: 380 / 400 / 440 / 480 / 690 V ±10 %, 3-phase, PE, 50 / 60 Hz ±5 %
Measurement accuracy: Voltage & Current 16-bit ADC
Control accuracy: Voltage 0.1 % fs / Current 0.1 % fs
Residual ripple: Voltage ≤ 0.1 % rms fs / Current ≤ 0.1 % rms fs
Dynamic voltage tolerance (0–100 % INom in 3 ms): Battery tester 3 % fs; Battery emulator 1 % fs
Short-circuit performance: systems up to 600 A Icw 3 kA; 1000 A Icw 8 kA; 1200 A Icw 15 kA
Environmental conditions (storage/transport/operation): Storage 1K21/1M11 +5 to +40 °C; Transport 2K12/2M4 -45 to +70 °C; Operation 3K22/3M11 +5 to +40 °C
Cooling: forced air (standard IP20/IP21/IP23) // forced water cooling option (IP54)
Safety standards: EN ISO 13849-1/-2, EN 60204-1
EMC standards: EN 61000-2-4 Class 3, EN 61000-6-2, EN 61000-6-4 / EN 55011, EN 61800-3 Cat.C2 (A1)

Available model variants (excerpt)
I-TS-3870-80 / 80 V / 35 kW / ±1000 A (application-dependent) | I-TS-3870-120 / 120 V / 50 kW / ±1000 A | I-TS-3870-300 / 300 V / 60 / 120 / 160 kW / ±200, ±600, ±1000 A options | I-TS-3870-600 / 600 V / 60–500 kW / ±200–±1200 A options | I-TS-3870-800 / 800 V / 320, 650 kW / ±600, ±1200 A options | I-TS-3870-1000 / 1000 V / 400 kW / ±800 A (examples; multiple configurations available)

Technical specifications

• Designation: I-TS-3870 single-channel DC source/sink system.
• Max. output voltage: up to 1500 V depending on configuration.
• Max. output current: up to 1200 A depending on configuration.
• Max. power single operation: up to 650 kW; parallel up to 2.6 MW.
• Input: 3-phase AC per above.
• Measurement & control: 16-bit ADC, 0.1 % fs control accuracy.
• Cooling & protection: forced air standard; water cooling and higher IP ratings as options.
• Interfaces & options: touchscreen, Modbus/TCP, CAN, VNC; EtherCAT, ProfiNet, SCPI and other options.
