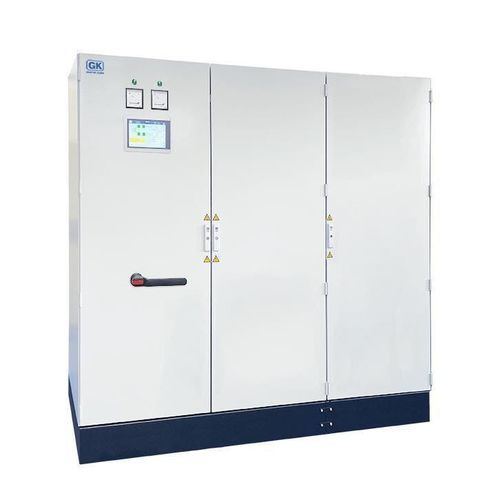

Cabinet power supply I-TS-3872

DCvariable-outputthree-phase

Overview
I-TS-3872: State-of-the-art, liquid-cooled DC source / sink. Depending on requirements, the system can be used in single, serial or parallel mode. Voltages of up to 1500 V are possible in serial mode. The I-TS high-performance test system is a high-dynamic, bidirectional DC power supply with continuous and seamless transition from source to sink operation. Thanks to the 3-level technology, it offers an adjustable voltage range of 10 – 1500 V with a center point. The DC channels can be operated individually or in parallel. Outstanding performance for applications in automotive, hydrogen and laboratory sectors.

Standard features

• The I-TS-3872 impresses even in its standard system configuration with extensive features, ready for immediate deployment.
• General information:
• Input voltage 380 / 400 V, 50 / 60 Hz
• Sense connections for voltage measurement / regulation
• DC current and voltage measurement with 0.1 % full scale accuracy
• Switchable battery tester / battery emulator version
• Protection class IP54
• Liquid cooling
• Integrated water/water heat exchanger
• Plug and play parallelization of two I-TS 3872 with the same technical data

Safety features

• Lockable main switch as load-break switch
• Safety control for Performance Level d in accordance with EN 60204-1 / ISO 13849-1
• Voltmeter and indicator light in cabinet door
• Redundant DC output contactors
• Connection terminals for external emergency stop
• 2x connection terminals for external Stop
• 1x connection terminals for external operating mode selection
• DC output electrically isolated
• 2x insulation monitoring devices (separately switchable)

Interfaces

• 10 inch display with touch operation
• Modbus / TCP interface
• CAN interface
• VNC interface

Options (extract)

• 2x fieldbus interfaces (EtherCAT or Profinet IO or Profibus DP) — one per channel
• Door lock
• Fail-safe feedback: Emergency stop, stop, DC output contactors open (no individual selection possible)

Typical applications

• Battery tests (charge and discharge tests of batteries)
• Battery simulation / battery emulation
• Load for fuel cells
• Test power supply for contactors, fuses and circuit breakers
• Test of DC motors (drive train)
• Testing of charging columns
• Power supply to trains for maintenance purposes

Technical data
Type: I-TS-3872

Electrical / Measurement / Performance
AC mains voltage / AC mains frequency: 380 / 400 V ± 10 %, 3-phase, PE, 50 / 60 Hz ±5 %
Measurement accuracy: Voltage: 16 Bit ADC // Current: 16 Bit ADC
Control accuracy: Voltage: 0.1 % fs // Current: 0.1 % fs
Residual ripple: Voltage: ≤ 0.1 % eff. fs; Current: ≤ 0.1 % eff. fs
Voltage tolerance dynamic (0-100 % INenn in 3 ms): Battery tester < 3% fs; Battery emulator < 1% fs
Short circuit performance: Short circuit proof: Icw: 4,5 kA

Environmental / Safety / EMC
Permissible environmental conditions: Storage as per EN 60721-3-1; Transport as per EN 60721-3-2; Operation as per EN 60721-3-3
Storage / Transport / Operation classes and temperatures: 1K21 / 1M11, +5 to +40 °C; 2K12 / 2M4, -25 to +70 °C; 3K22 / 3M11, +5 to +40 °C
Cooling method: Enforced liquid cooling (IP54)
Safety standards: EN ISO 13849-1, EN ISO 13849-2; EN 60204-1 (exceptions: Sec. 11.3 Protection type, Sec. 13.2 Identification of conductors)
EMC Standards: EN 61000-2-4 class 3; EN 61000-6-2; EN 61000-6-4

Available types (extract)
Type: I-TS-3872-1500
max. DC voltage in V: 1500
Power in kW: 300, 600
Current in A: ± 1000
Current rise time at UNenn 10 % - 90 % in ms: < 1,3

Characteristics / technical specifications

• Model: I-TS-3872
• Adjustable voltage range: 10 – 1500 V (center point)
• Bidirectional DC source / sink with seamless transition
• 3-level technology for high dynamics
• Liquid cooling with integrated water/water heat exchanger
• Protection class IP54
• Measurement and control accuracy: 0.1 % full scale
• Short circuit capability: Icw 4.5 kA
• Interfaces: Modbus/TCP, CAN, VNC, touch display
• Typical power options: 300 kW, 600 kW (type I-TS-3872-1500)
